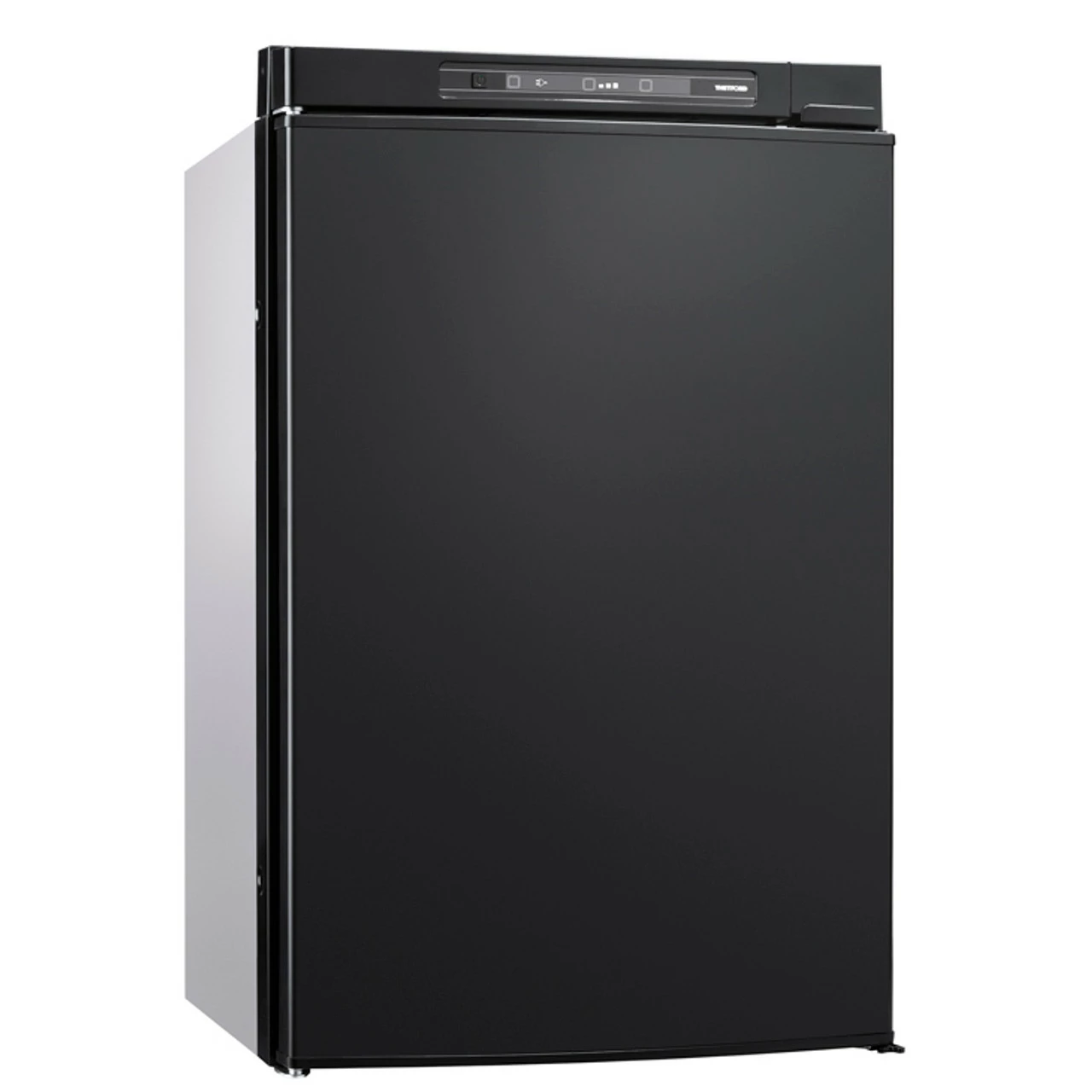

Thetford N4104 Motorhome Absorption Refrigerator

Thetford N4104 Motorhome Campervan and Caravan Absorption Fridge

The Thetford N4104 Motorhome Campervan and Caravan Fridge is a new compact 3 way absorption fridge featuring an improved, accommodating freezer with quality assured build for reliability and longevity.

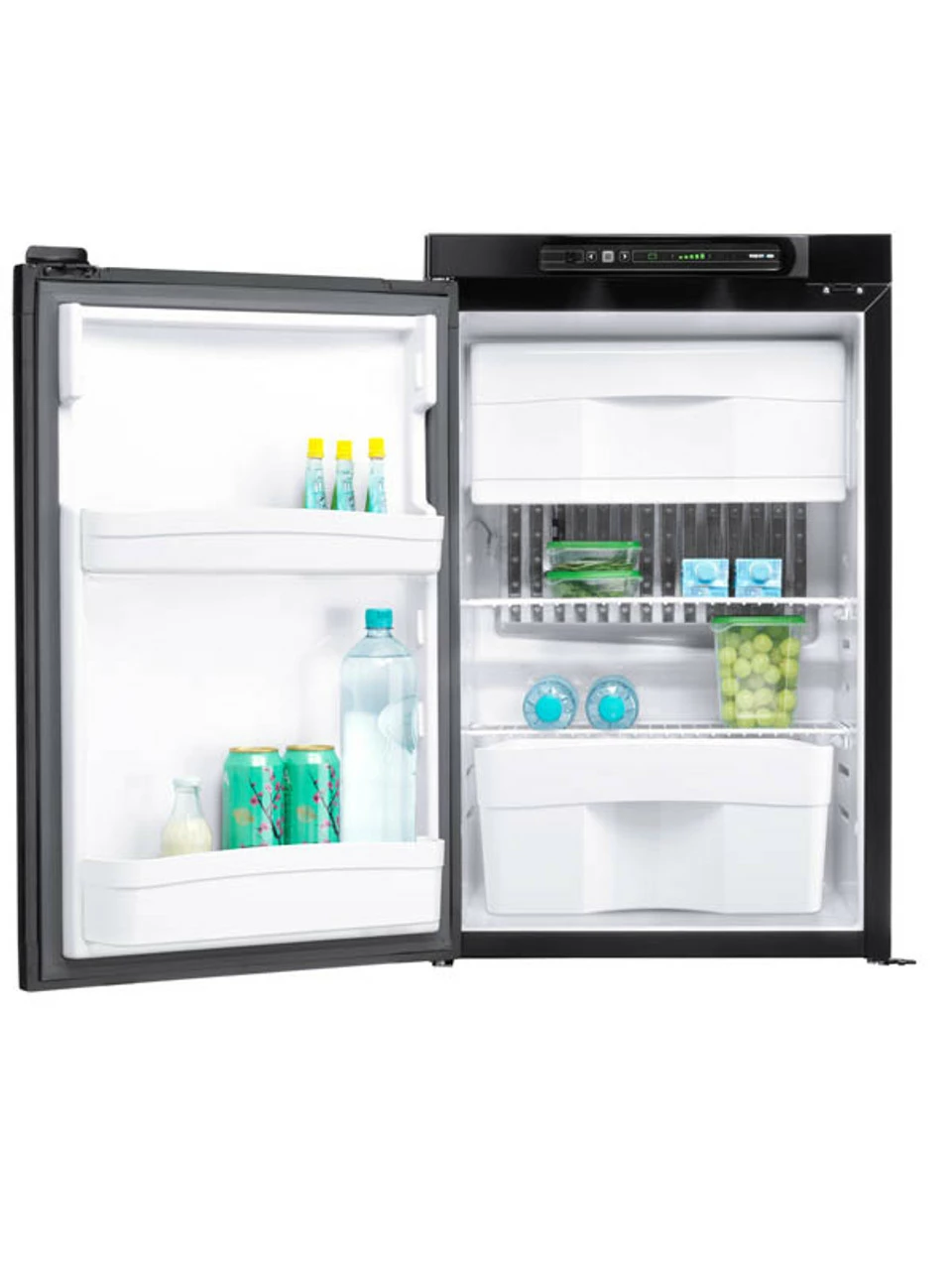

With it’s 105 litre capacity (inclusive of an 11 litre freezer compartment), the Thetford N4104 Motorhome Campervan and Caravan Fridge is perfect for keeping treats and essentials cool and secure whilst on the go, and also comes supplied with flexible shelving, door bins and a bottle slide to ensure that your goods remain stable whilst your caravan, motorhome or campervan is in transit.

Featuring an easy to use control panel, and with electric ignition, the Thetford N4104 Motorhome Campervan and Caravan Fridge is guaranteed to deliver an unparalleled cooling performance with low key, quiet operations so you’ll barely even hear it working. Additionally, the automatic version of the Thetford N4104 is available as a framed or frameless variant.

The Thetford N4104 Caravan and Motorhome Fridge is now supplied with a reversible hinge as standard and as such can be installed as either a left or right handed hinge, and replaces the N3104.

Thetford LED (E+) control panel:

Thetford E model fridges, which were once manual, have now been replaced with the E+ range, which are automatic, making all of the fridges in the N4000 series fully automatic. The E+ models keep things simple with a sleek and clear LED display.

Thetford LCD (A) control panel:

The A model fridges are also fully automatic, and features an advanced LCD control panel for easier diagnostics and control.

Thetford N4104 Motorhome Campervan and Caravan Absorption Fridge:

• Automatic power source selection
• Securely closed door
• Flexible bottle slide
• 2 flexible white door bins
• 2 flexible white shelves
• Control panel
• First class cooling performance
• Quiet to run
• Power cables and gas inlet tube at the bottom-backside of the fridge
• Reversible door swing
• 3-year guarantee
• CE mark of quality, CFC-free and almost entirely recyclable
• Unsuitable for commercial or static building applications
• Please ensure you have measured the fridge correctly before purchasing, re-stock fees can apply if a fridge has been opened.
• All gas appliances must be fitted by a qualified gas engineer, failure to do so can affect your warranty.

Thetford had some production/supply issues with fridge shelves towards the end of last year and rather than withhold entire production of the fridges, they issued a number of them without. You should find a note in the fridge explaining how to order them FOC directly to you.

User Manual:



Installation Manual:





Technical Specifications:

Height (mm):

821

Width (mm):

525

Depth (mm):

578

Operation:

Absorption

Total Volume:

105 Litres

Freezer Volume:

11 Litres

Wheel Arch Model:

No

Door Version:

Framed/Frameless Right & Left Hinge

Usable Power Source:

AC / DC / Gas

Operation:

Automatic

Ignition:

Electric

Display:

LED

Energy Consumption:

2.8 kWh/24h

Energy Consumption Gas:

330 grams/24h

Max Input 12V:

11.6 A/h

Max Input 230V:

1.5 A/h

Weight:

27 Kg
