TBB Power Mezzo Standard Kit For Non Lithium Battery Systems

A Complete Power Management And Leisure Battery Charging Kit

Gain ultimate control over your electrical system with the cutting-edge Mezzo campervan, caravan and motorhome Power Management System. This innovative and fully integrated solution gives you the power to monitor and regulate all aspects of your electrical system with ease and convenience.

At the heart of this system lies the LMP Master Power Unit, a powerhouse of technology that includes a built-in mains leisure battery charger, a solar charge controller, and a battery management system that provides a detailed overview of your power usage within your campervan, caravan or motorhome. With features including fresh and waste water tank level sensors, battery charging temperature compensation and a comprehensive set of permanent and switched outputs, the Mezzo kit ensures you’re always in command.

Thanks to its range of control panels, wireless switches, and a user-friendly Bluetooth app, operating the Mezzo system is a breeze. When considering the requirements of campervan or motorhome owners, the designers have put a lot of thought and effort into creating a product that not only functions well, but is also aesthetically pleasing and is easy to use. Installation is quick and easy thanks to the automotive-grade WAGO style connectors to reduce installation time and enhance the security of electrical cable connections. Meanwhile full system integration optimizes all aspects of the system to maximize power utilization. Get ready to experience a whole new level of control with the Mezzo campervan and motorhome Power Management System.

Key Features of the TBB Mezzo Kit Standard

• iOS and Android Mezzo app for system monitoring and control
• LMP Master Power Unit with 30 Amp mains battery charger, 14 fused DC outputs to power appliances, 15 Amp PWM solar charge controller, dual water tank level measurement, and Lithium battery compatible
• Fully integrated system, with all parts of the system connected to the central LMP Master Power Unit and fully optimised for peak efficiency
• Wireless switch panel to operate the DC outputs means freedom of choice on location for ease of use
• High quality and easy to fit WAGO style connectors for ease of installation
• Highly upgradable with a wide range of optional extras

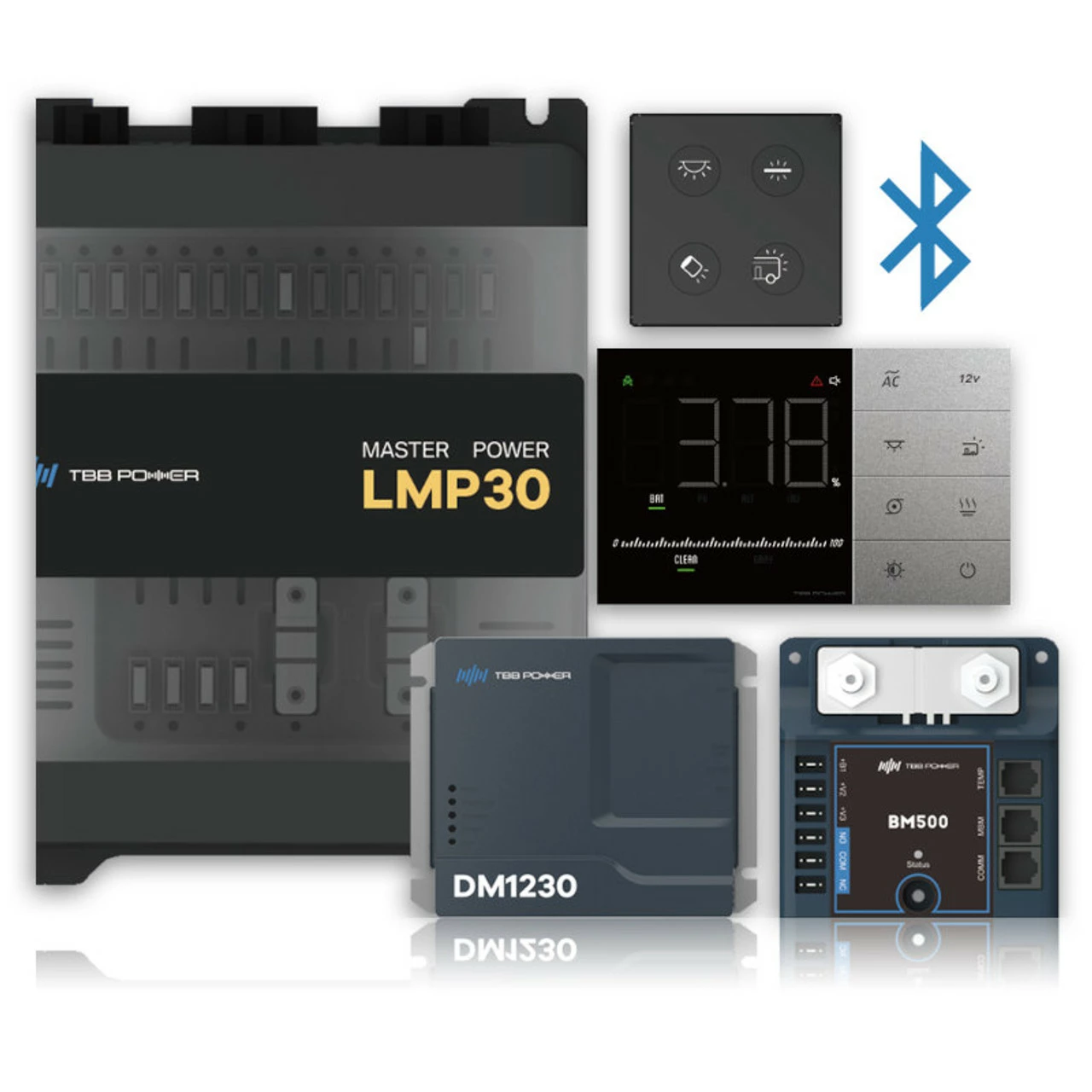

Mezzo Standard Kit

• Mono control panel with Bluetooth for Mezzo app
• LMP30 Master Power Unit

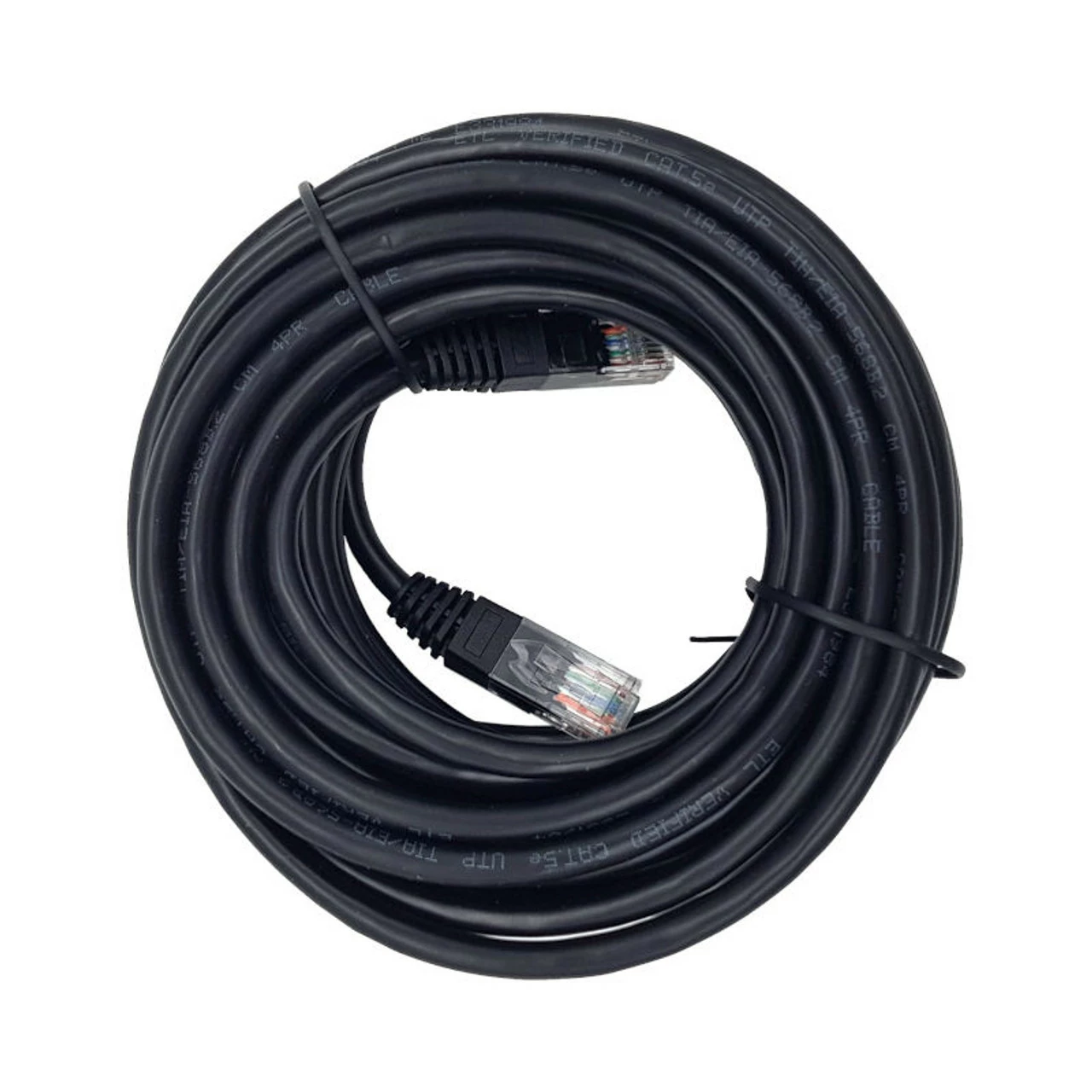

• BM500 500A battery shunt connected to hub via RJ-45 ethernet cable
• PICO II RF wireless switch panel
• NEMO DM1230 30 Amp battery to battery (DC-DC) charger
• Fresh and waste water tank level probes

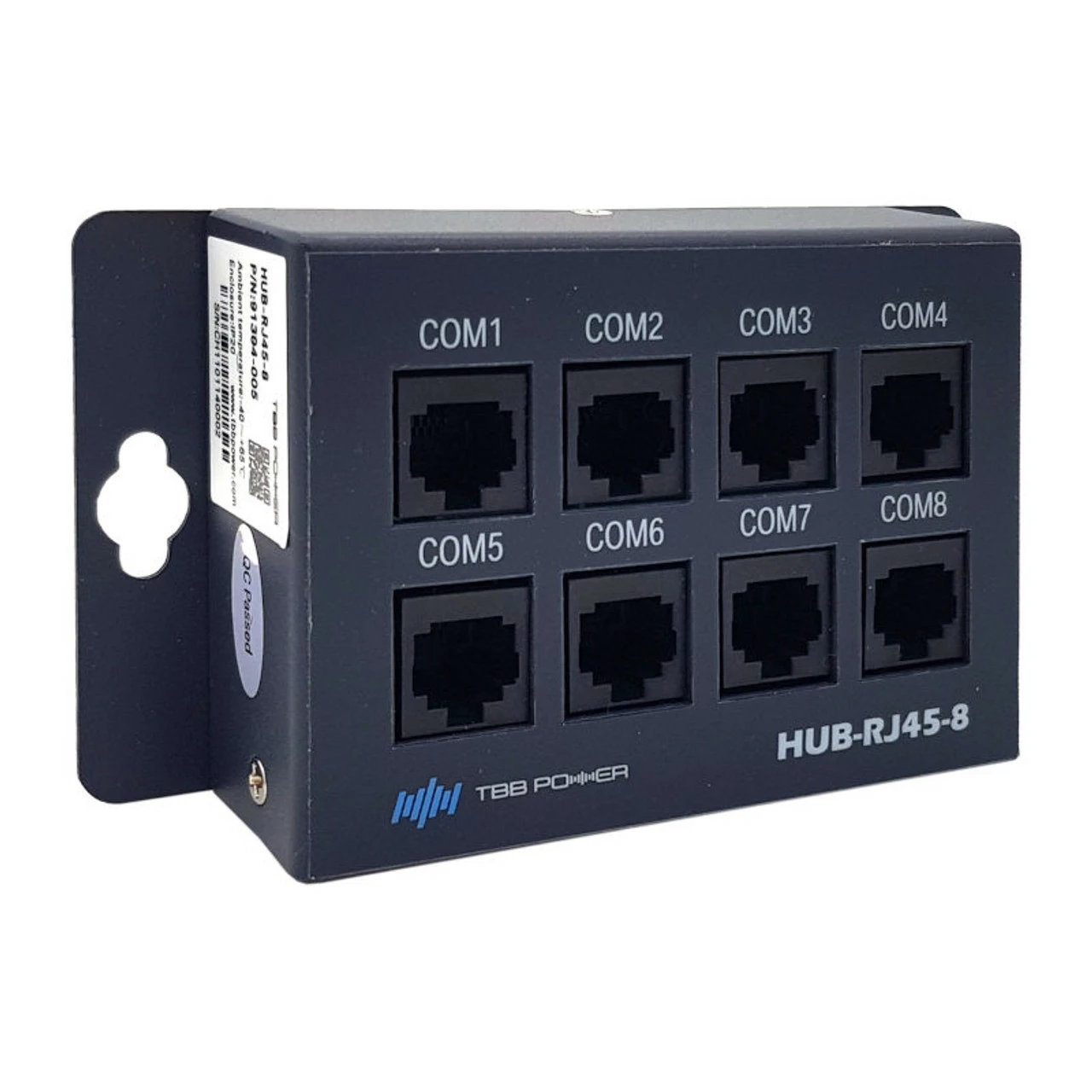

• Complete data cable kit and hub

MONO Control Panel

• 4.5″ LCD display screen
• 8 physical buttons for complete control
• Bluetooth compatibility for connection with the free Mezzo app (iOS & Android)

LMP30 Master Power Unit

• MEZZO system central control unit
• 30 Amp 230V AC mains leisure battery charger
• 15 Amp PWM solar charge controller
• Fresh and waste water tank level measurement system
• Compatible with all battery chemistry types – AGM/GEL/WET/LiFePO4
• RF receiver for PICO II switch panel

BM500 Battery Shunt 500 Amp

• Monitors battery to allow the system to calculate battery state of charge, historical information and other battery parameters
• Connects to the LMP30 via the 8 port RJ-45 Hub

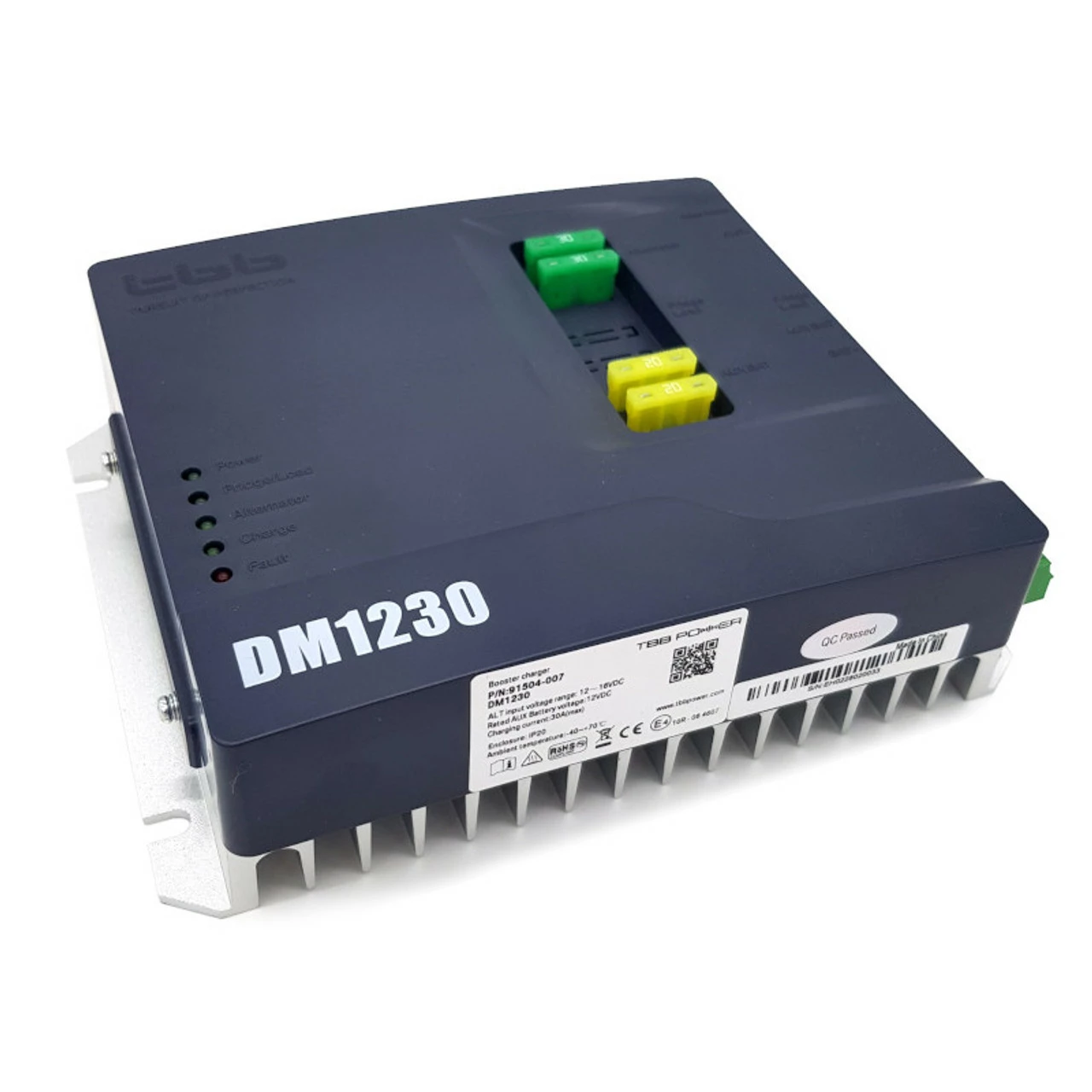

NEMO Series DM Battery to Battery Chargers DM1230

• Fully Euro 6 engine compatible
• TBB Premium II multistage adaptive algorithm for improved charging
• Built in automatic battery temperature compensation system (temperature sensor included)
• Suitable for AGM, GEL, Wet and Lithium battery chemistry
• Built in Battery Level Voltage Protection
• Built in fuse protection
• Data connection to LMP Master Power Unit
• D+ or ACC activation monitoring
• Quick, secure and easy WAGO style cable connectors

RSA/RSE-A Tank Sensor Kit

• Top of tank installation probes for fresh and waste water tanks
• Capacitive waste tank probe is not affected by dirt, solids or debris
• Precise tank level measurement

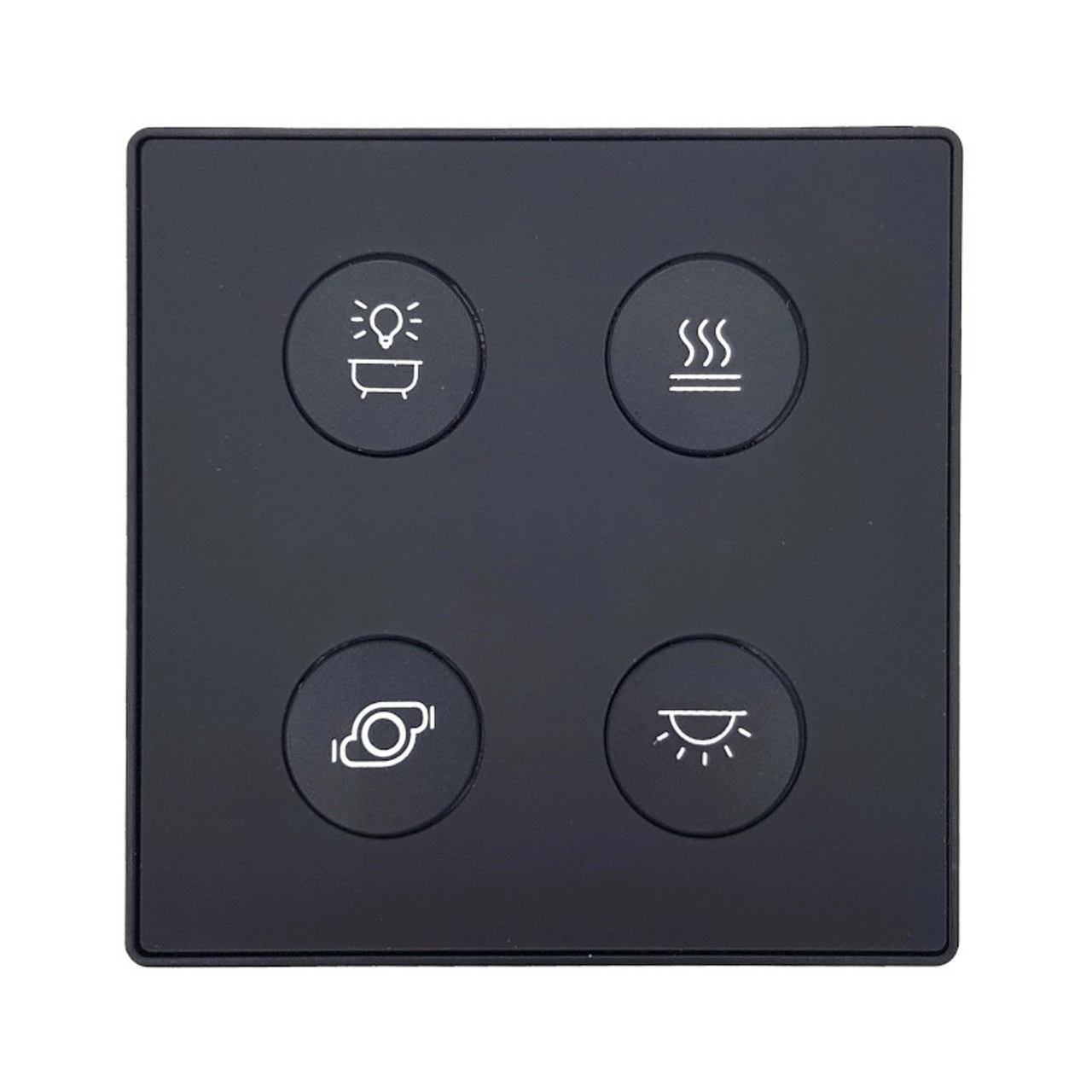

PICO II RF Wireless Panel

• Wireless installation for complete choice on location within your campervan, caravan or motorhome.
• Clear labelling for ease of use
• Surface mounted installation
• Powered by 2 x coin type batteries
• Programmable buttons using the Mezzo App

For added control over the Mezzo kit, the TBB Power Smartphone App, available on iOS or Android, provides bluetooth connectivity to monitor, adjust and control different elements of the Mezzo system. An example of Smartphone screenshots are shown below.



TBB Power Smart Control App



 To add flexibility and a more bespoke system to match your needs, there are upgrades available for the Mezzo Standard Kit

• Control Panel – Upgrade the Mono Control Panel to the full feature LCD C4-BT panel. Bluetooth compatibility through the Mezzo App for increased convenience.
• DC-DC charger – Harness more power from the motorhome or campervan electrical system with an upgraded DC-DC charger. DM1245 45A battery to battery charger or DMT1250 30A battery to battery charger with 20A bypass to power a 3-way fridge.

Technical Specifications:

Panel Wattage:

N/A

Solar Controller Technology:

PWM

Solar Controller Rating Voltage:

25V

Solar Controller Rating Amps:

15A

Inverter Charge:

N/A

Inverter:

No

230V Mains Charger:

12V – 30A

DC to DC Charger:

12V – 30A

Compatible Battery Types:

Wet/AGM/Gel/LiFePO4

Battery Included:

No

Battery Type:

N/A

Water Level Indication:

Yes – Probes Included

DC Outputs:

14

Bluetooth App Compatible:

Yes
