TBB Power Mezzo Kit Standard Plus For Non Lithium Battery Systems

Power Management Kit Complete With Inverter

Take control of your electrical setup with the state-of-the-art Mezzo Power Management System for campervans, caravans, and motorhomes. This cutting-edge solution allows you to effortlessly monitor and regulate all aspects of your electrical system for maximum efficiency.

At the core of this system is the powerful LMP Master Power Unit, featuring a built-in mains battery charger, solar charge controller, and a comprehensive battery management system that gives you a clear picture of your power consumption. With features like fresh and waste water tank sensors, battery charging temperature compensation, and a variety of permanent and switched outputs, the Mezzo kit puts you in charge. To finish off the kit, a powerful inverter provides 230V power for full off-grid travelling.

The Mezzo system is user-friendly, with control panels, wireless switches, and a convenient Bluetooth app making operation a breeze. The design team has taken into consideration the needs of campervan and motorhome owners, creating a product that is not only functional but also attractive and easy to use. Installation is quick and hassle-free with automotive-grade WAGO style connectors, reducing installation time and enhancing the security of electrical cable connections. Full system integration including inverter optimizes all aspects of the system for maximum power utilization.

Unleash the full potential with the Mezzo Kit Standard by including a 1500W pure sine wave inverter with bypass feature and an internally pre-wired consumer unit that is designed to specifically work with the innovative inverter bypass system.  This simple, yet ingenious design feature allows 230V AC mains appliances and sockets to be connected directly to the inverter with no external switch over needed.  When the inverter detects a 230V AC mains supply from the vehicle hook up (via the FB15 consumer unit), it automatically switches off the inverter and within just 30ms switches over to the hook up supply.

Key Features of the TBB Mezzo Power Management System

• iOS and Android Mezzo app for system monitoring and control
• LMP Master Power Unit with 30 Amp mains battery charger, 14 fused DC outputs to power appliances, 15 Amp PWM solar charge controller, dual water tank level measurement, and Lithium battery compatible
• 1500W continuous pure sine wave inverter with bypass and pre-wired consumer unit, so when vehicle is connected to the mains hook up the inverter shuts down and appliances are switched to mains supply automatically
• Fully integrated system, with all parts of the system connected to the central LMP Master Power Unit and fully optimised for peak efficiency
• Wireless switch panel to operate the DC outputs means freedom of choice on location for ease of use
• High quality and easy to fit WAGO style connectors for ease of installation
• Highly upgradable with a wide range of optional extras

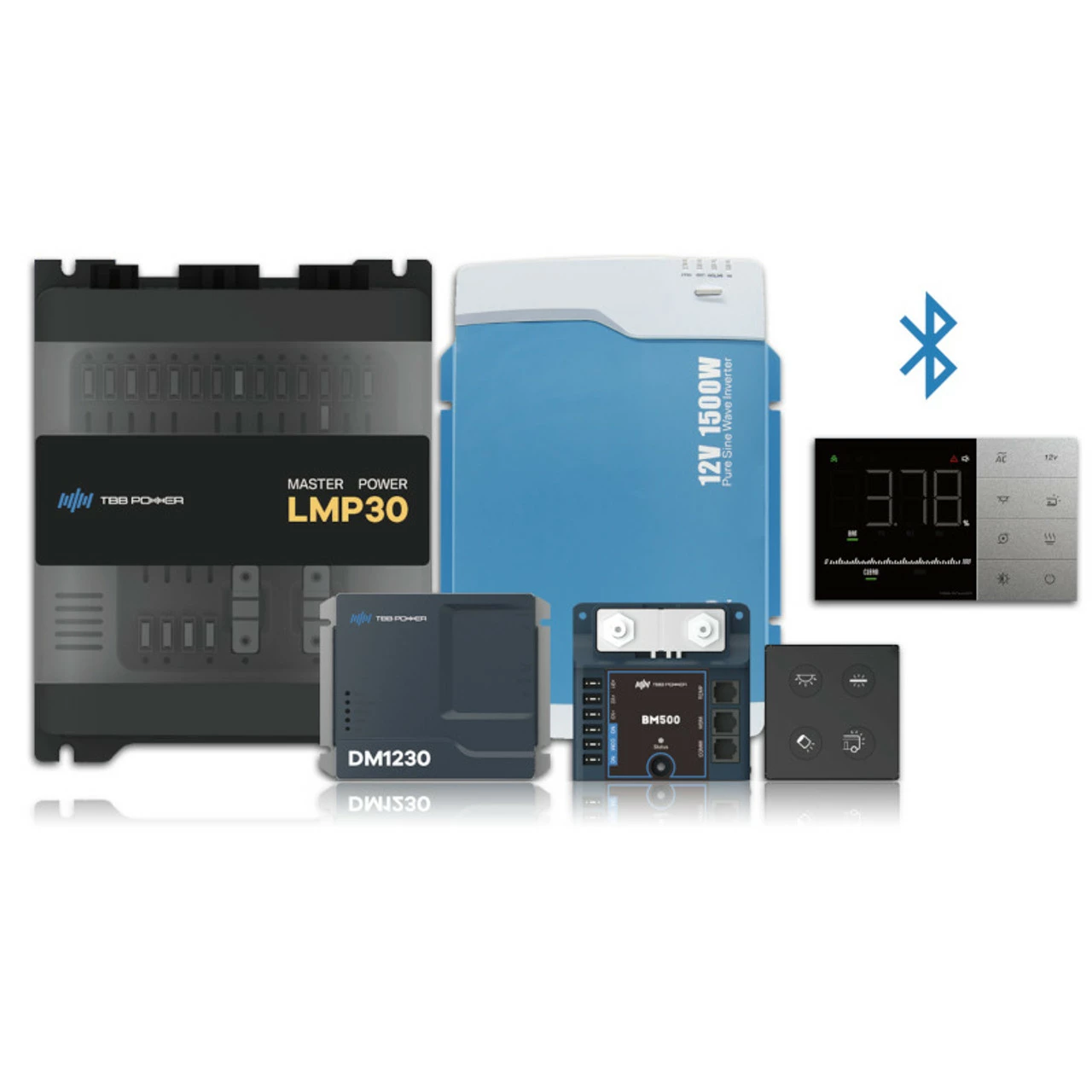

Mezzo Standard Plus Kit

• Mono control panel with Bluetooth for Mezzo app
• LMP30 Master Power Unit
• IH1500L-BYP 1500W pure sine wave inverter with bypass
• FB15 pre-wired consumer unit with internal bypass wiring

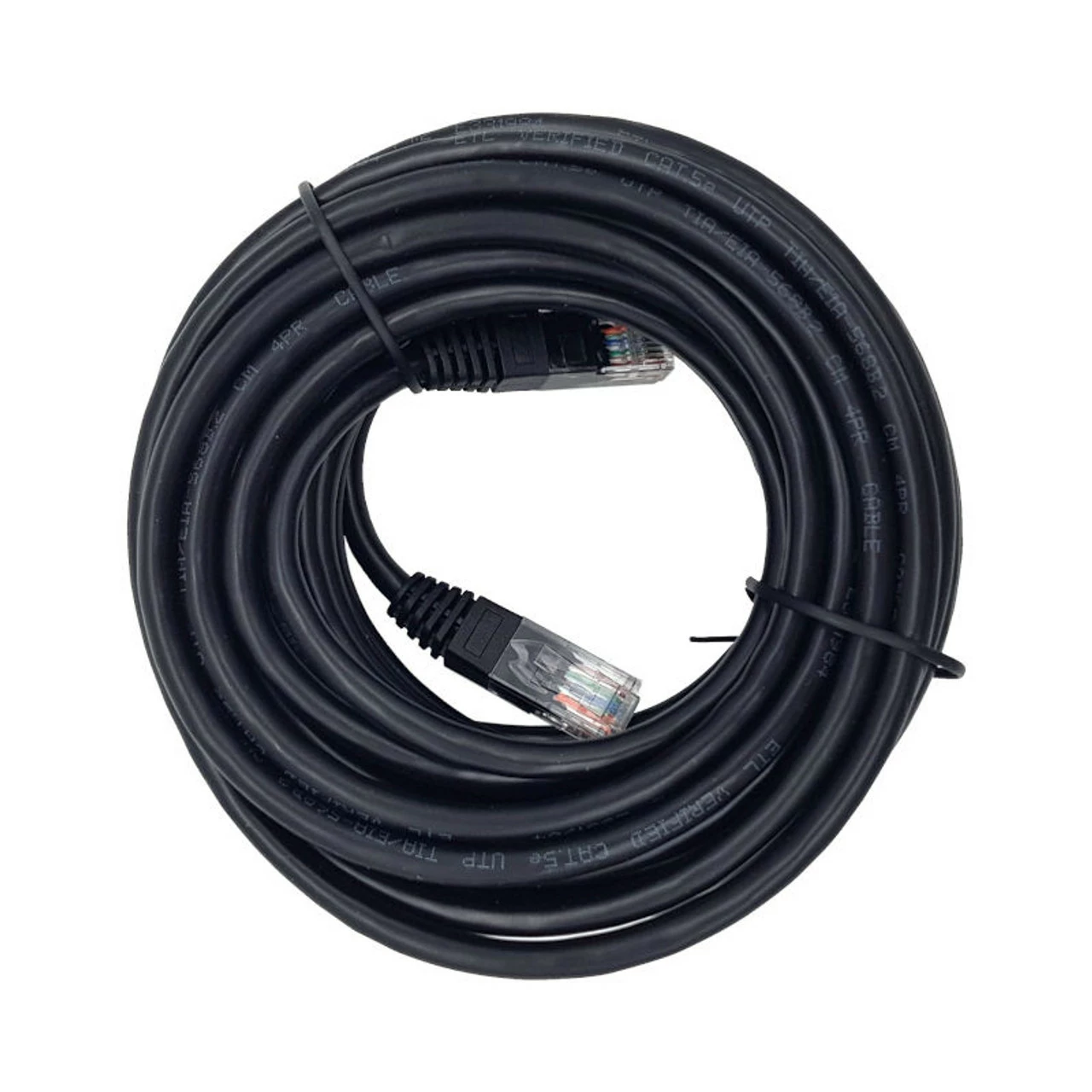

• BM500 500A battery shunt connected to hub via RJ-45 ethernet cable
• PICO II RF wireless switch panel
• NEMO DM1230 30 Amp battery to battery (DC-DC) charger
• Fresh and waste water tank level probes
• Complete data cable kit and hub

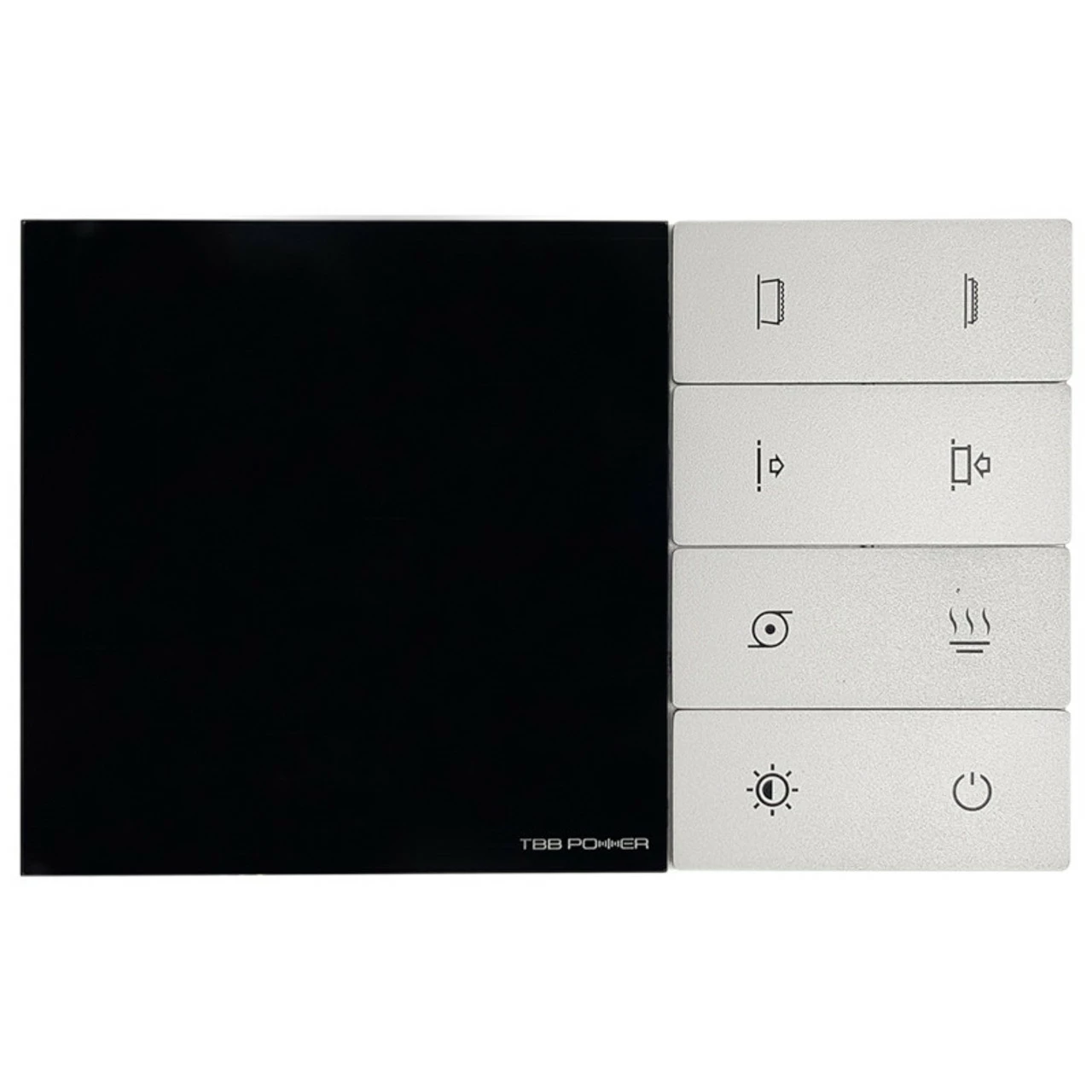

MONO Control Panel

• 4.5″ LCD display screen
• 8 physical buttons for complete control
• Bluetooth compatibility for connection with the free Mezzo app (iOS & Android)

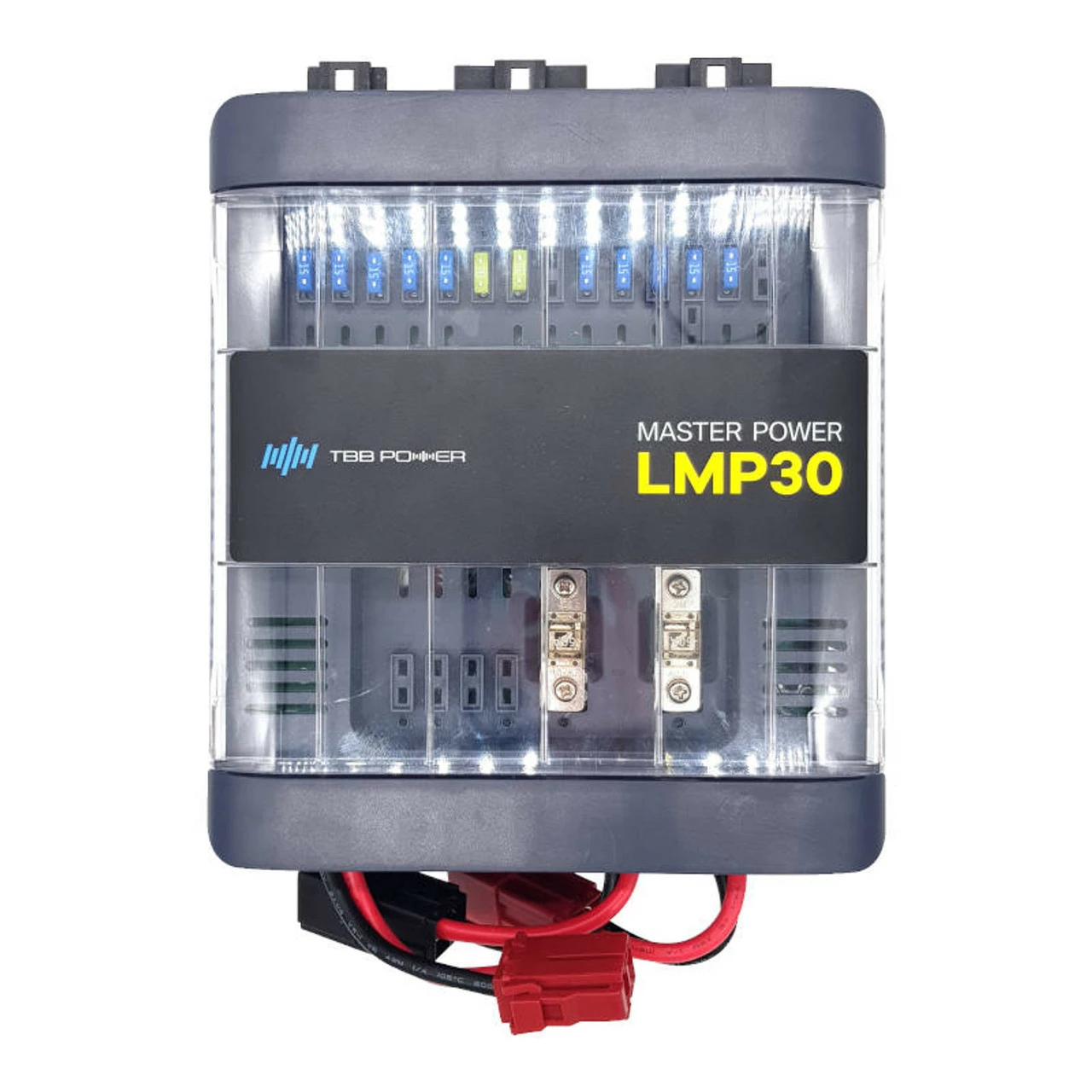

LMP30 Master Power Unit

• MEZZO system central control unit
• 30 Amp 230V AC mains leisure battery charger
• 15 Amp PWM solar charge controller
• Fresh and waste water tank level measurement system
• Compatible with all battery chemistry types – AGM/GEL/WET/LiFePO4
• RF receiver for PICO II switch panel

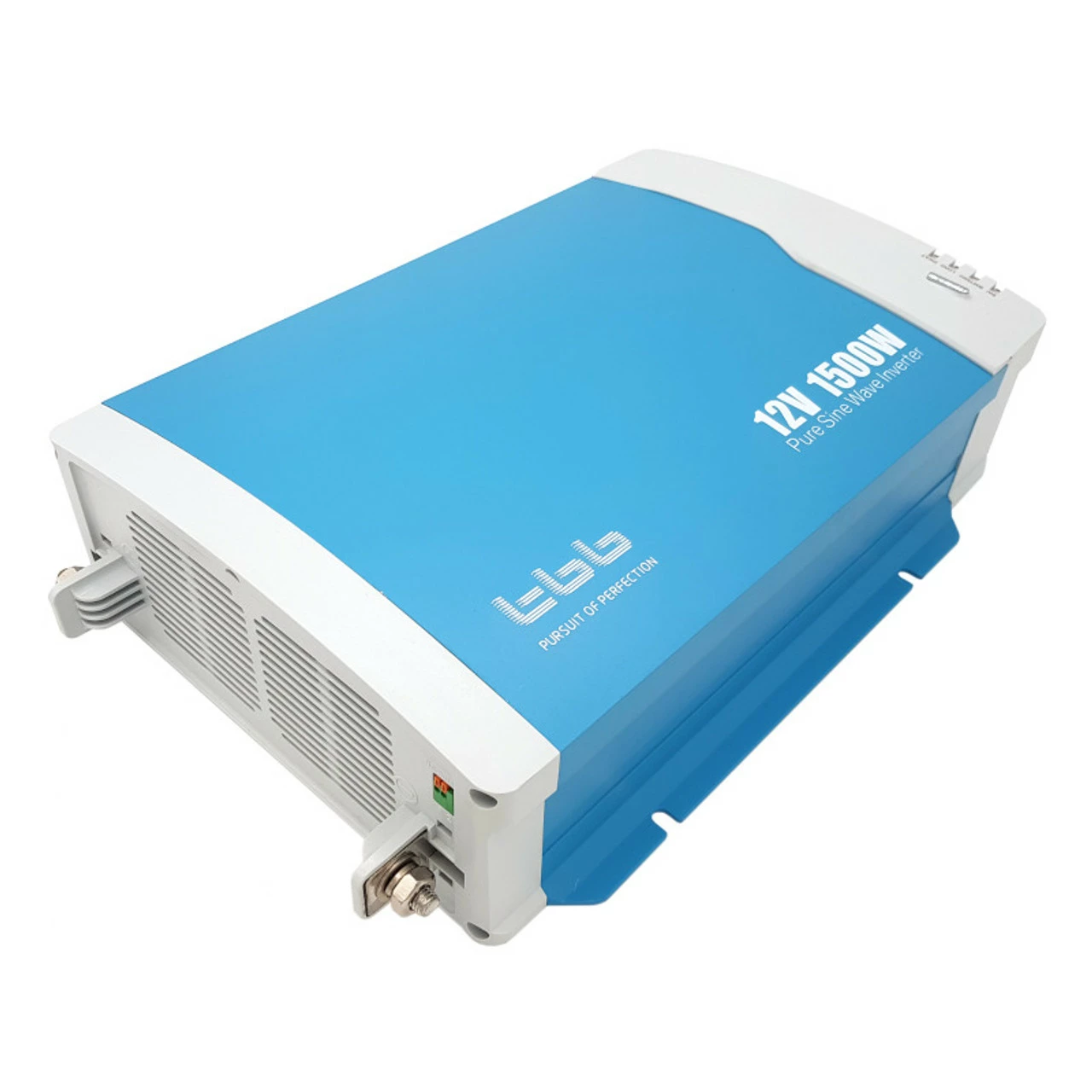

IH1500L-BYP 1500W Inverter with Bypass

• 12V DC input with 1500W continuous 230V AC output @ 35°C
• Maximum 230V AC power output (1 min) 1600W
• 230V AC output 50/60Hz
• 230V AC bypass (170-260VAC) max current output 30 Amp
• Bypass function allows the inverter to automatically switch off when it detects AC power from a hook up input and switch the appliance to be powered directly from the hook up

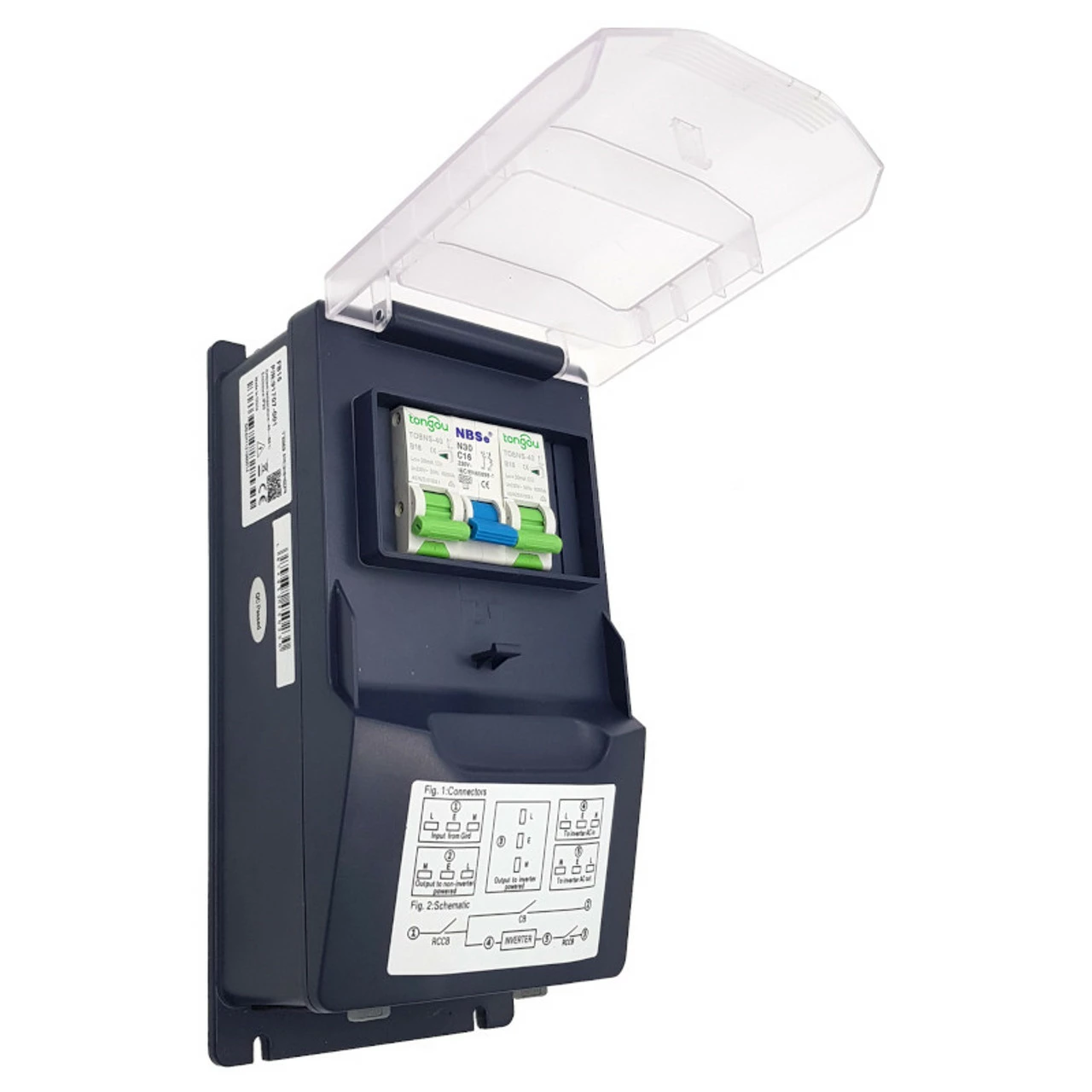

FB15 Consumer Unit

• 2x RCCB 30mA 16 Amp and 1x MCB 16 Amp
• Prewired internally for bypass function of inverter
• Quick, secure and easy WAGO style external cable connectors

BM500 Battery Shunt 500 Amp

• Monitors battery to allow the system to calculate battery state of charge, historical information and other battery parameters

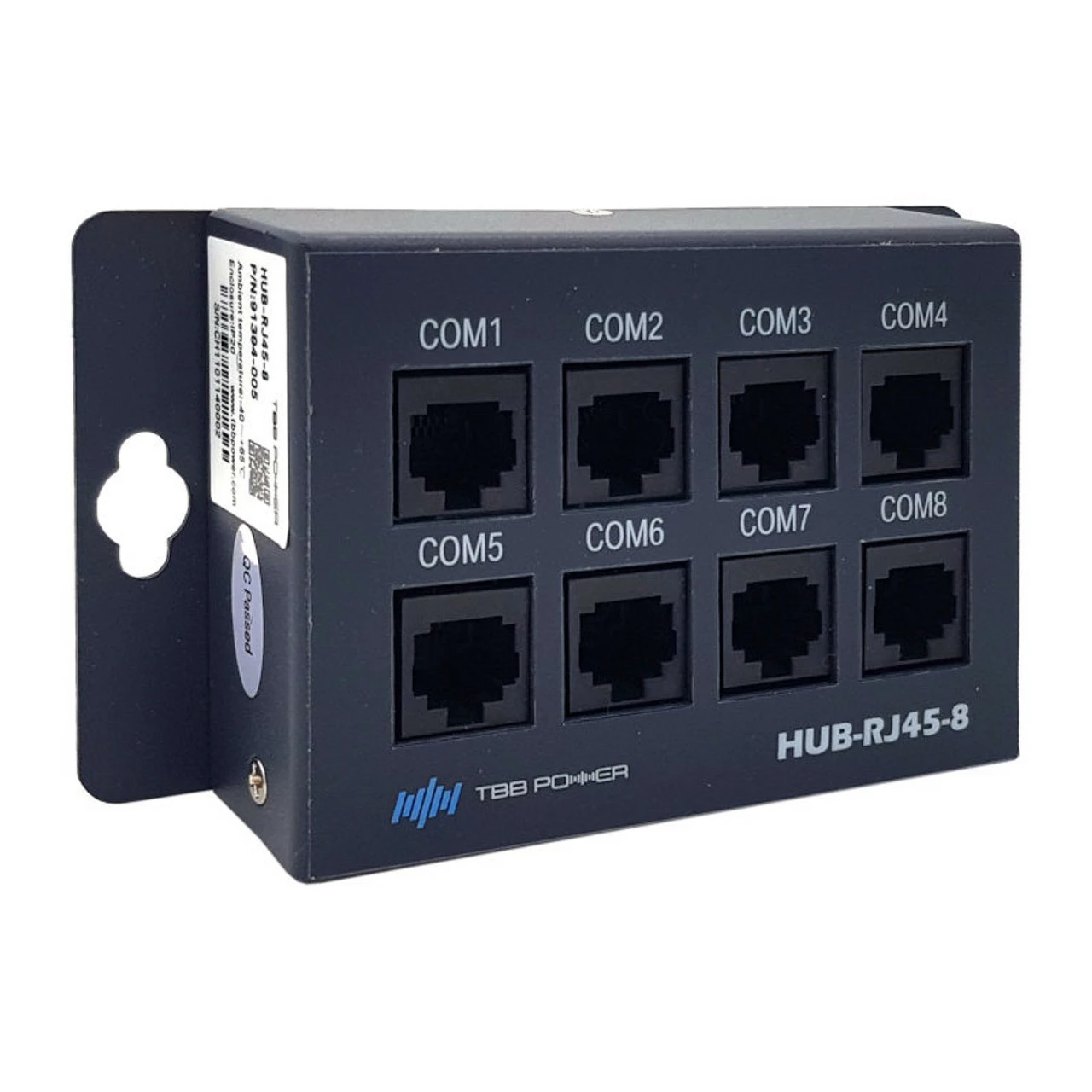

• Connects to the LMP30 via the 8 port RJ-45 Hub

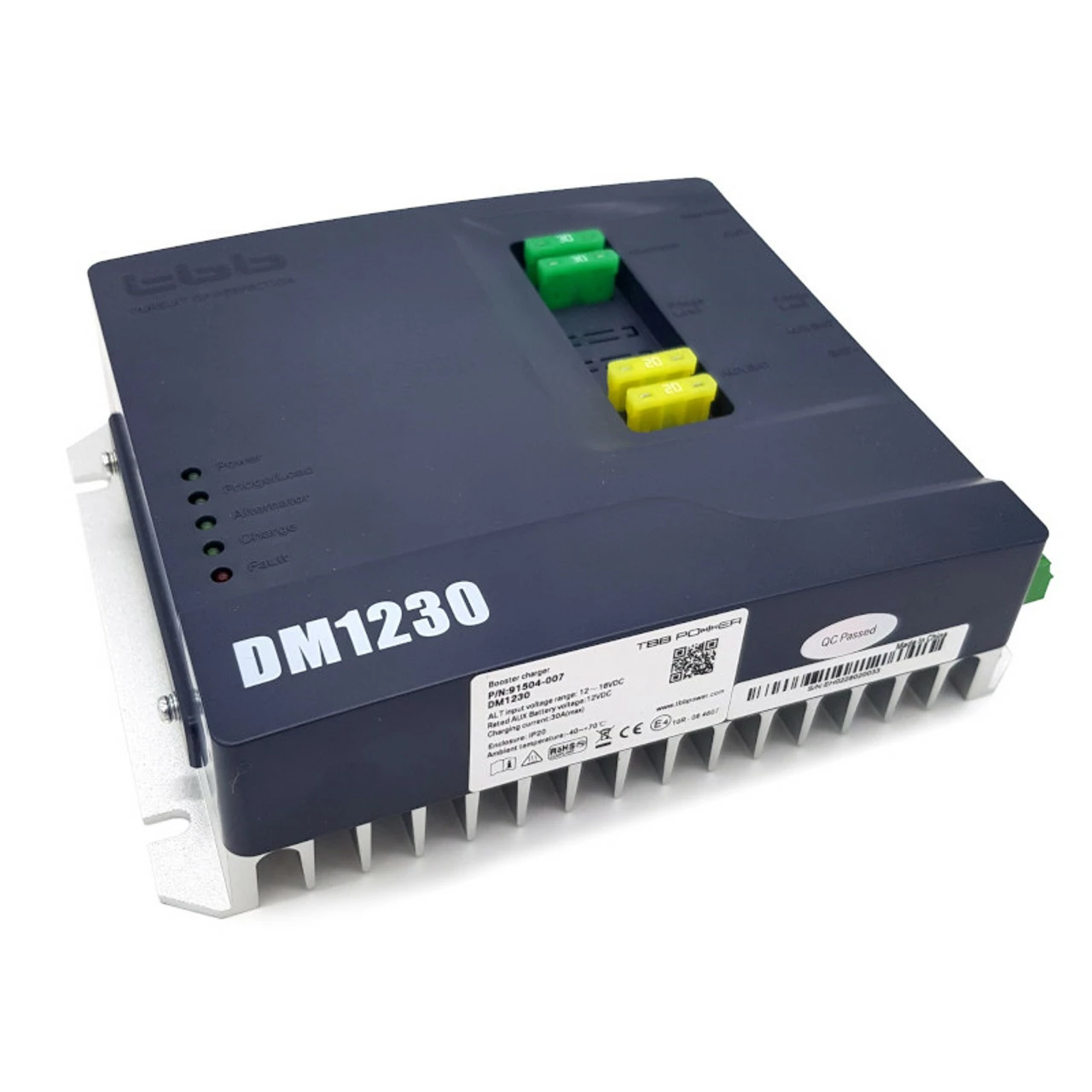

NEMO Series DM Battery to Battery Chargers DM1230

• Fully Euro 6 engine compatible
• TBB Premium II multistage adaptive algorithm for improved charging
• Built in automatic battery temperature compensation system (temperature sensor included)
• Suitable for AGM, GEL, Wet and Lithium battery chemistry
• Built in Battery Level Voltage Protection
• Built in fuse protection
• Data connection to LMP Master Power Unit
• D+ or ACC activation monitoring
• Quick, secure and easy WAGO style cable connectors

RSA/RSE-A Tank Sensor Kit

• Top of tank installation probes for fresh and waste water tanks
• Capacitive waste tank probe is not affected by dirt, solids or debris
• Precise tank level measurement

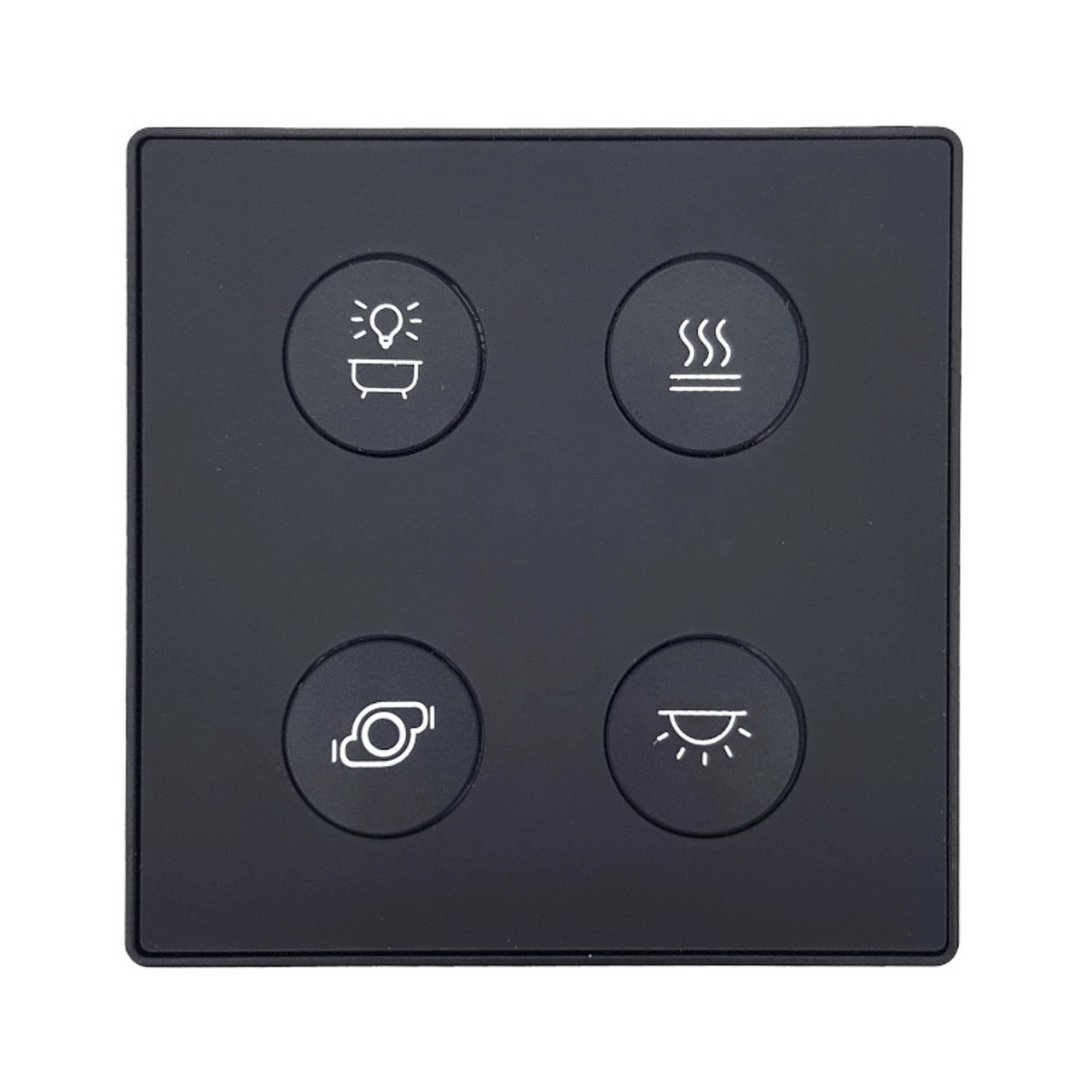

PICO II RF Wireless Panel

• Wireless installation for complete choice on location within your campervan, caravan or motorhome.
• Clear labelling for ease of use
• Surface mounted installation
• Powered by 2 x coin type batteries
• Programmable buttons using the Mezzo App

For added control over the Mezzo kit, the TBB Power Smartphone App, available on iOS or Android, provides bluetooth connectivity to monitor, adjust and control different elements of the Mezzo system. An example of Smartphone screenshots are shown below.



TBB Power Smart Control App



For added flexibility and to provide a more bespoke system to match your needs, there are upgrades available for the Mezzo Standard Kit

• Control Panel – Upgrade the Mono Control Panel to the full feature LCD C4-BT panel. Bluetooth compatibility through the Mezzo App for increased convenience.
• DC-DC charger – Harness more power from the motorhome or campervan electrical system with an upgraded DC-DC charger. DM1245 45A battery to battery charger or DMT1250 30A battery to battery charger with 20A bypass to power a 3-way fridge.

Technical Specifications:

Panel Wattage:

N/A

Solar Controller Technology:

PWM

Solar Controller Rating Voltage:

25V

Solar Controller Rating Amps:

15A

Inverter:

Yes

Inverter Charge:

12V/1500W

230V Mains Charger:

12V – 30A

DC to DC Charger:

12V – 30A

Compatible Battery Types:

Wet/AGM/Gel/LiFePO4

Battery Included:

No

Battery Type:

N/A

Water Level Indication:

Yes – Probes Included

DC Outputs:

14

Bluetooth App Compatible:

Yes
