TBB Power Mezzo Premium Kit With Lithium Battery

A Complete Power Management And Leisure Battery Charging Kit

Gain ultimate control over your electrical system with the cutting-edge Mezzo campervan, caravan and motorhome Power Management System. This innovative and fully integrated solution gives you the power to monitor and regulate all aspects of your electrical system with ease and convenience.

At the heart of this system lies the LMP Master Power Unit, a powerhouse of technology that includes a built-in mains leisure battery charger, a solar charge controller, and a battery management system that provides a detailed overview of your power usage within your campervan, caravan or motorhome. With features including fresh and waste water tank level sensors, battery charging temperature compensation and a comprehensive set of permanent and switched outputs, the Mezzo kit ensures you’re always in command.

Experience ultimate power and reliability with the MEZZO kit Premium including a 100Ah LiFePO4 Lithium leisure battery, making it perfect for off-grid living. The Mezzo Kit Premium is the same as the Mezzo Kit Standard, but the BM500 battery shunt is replaced with an M12-100H 100ah LiFePO4 Lithium battery. This Lithium Phosphate battery is light, has a high level of charge and discharge capability (can be charged quicker than a traditional leisure battery), has a comprehensive Battery Management System, built-in shunt and can operate a very low temperatures. This will operate effectively down to -30 Degrees C due to the built in heater, so is perfect for off-grid vehicles.

Key Features of the TBB Mezzo Kit Premium

• iOS and Android Mezzo app for system monitoring and control
• LMP Master Power Unit with 30 Amp mains battery charger, 14 fused DC outputs to power appliances, 15 Amp PWM solar charge controller, dual water tank level measurement, and Lithium battery compatible
• Fully integrated system, with all parts of the system connected to the central LMP Master Power Unit and fully optimised for peak efficiency
• 100ah LiFePO4 Lithium battery with Battery Management System, integrated shunt and heater
• Wireless switch panel to operate the DC outputs means freedom of choice on location for ease of use
• High quality and easy to fit WAGO style connectors for ease of installation
• Highly upgradable with a wide range of optional extras

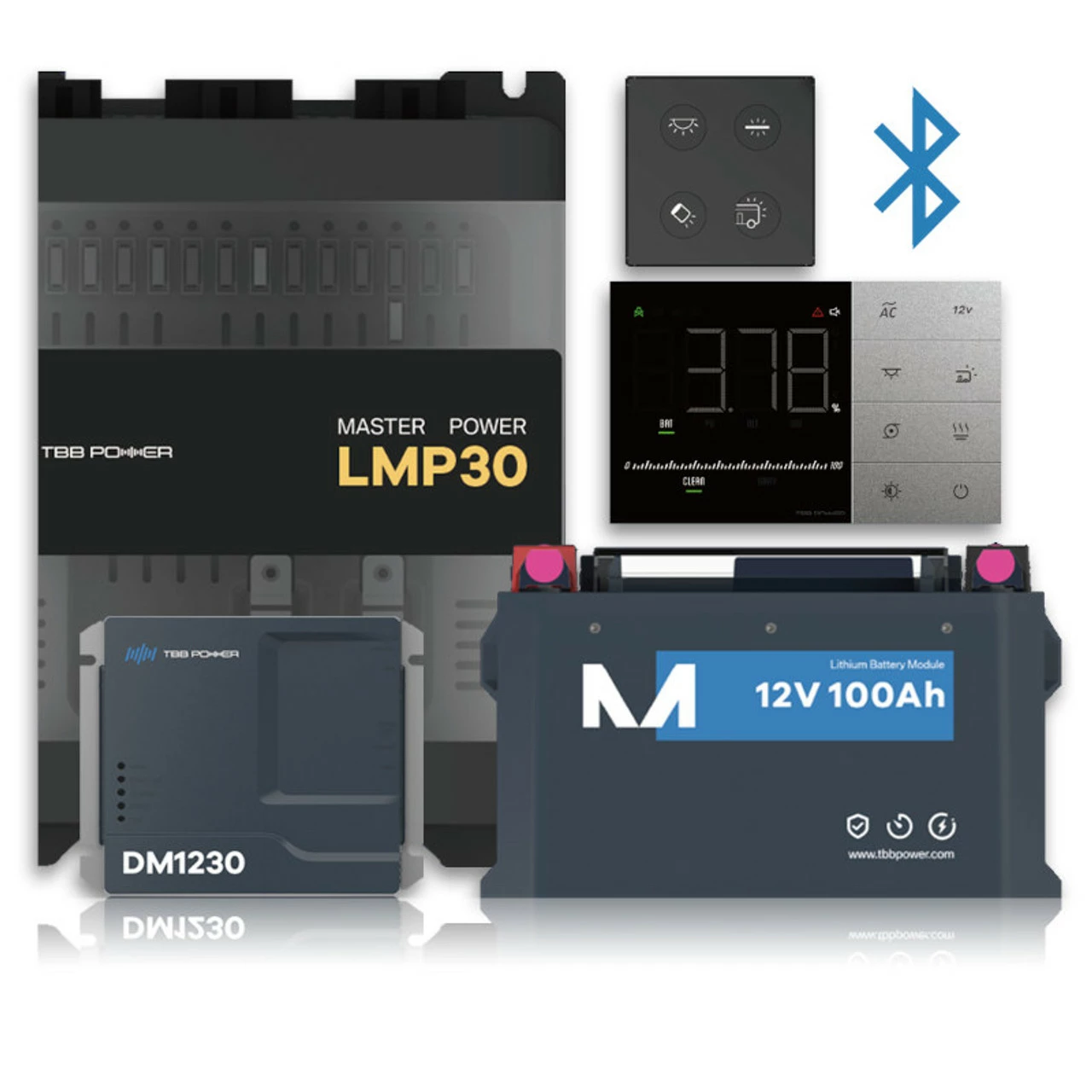

Mezzo Premium Kit

• Mono control panel with Bluetooth for Mezzo app
• LMP30 Master Power Unit
• M12-100H 100Ah LifePO4 Lithium Battery with BMS/Shunt/Heater
• PICO II RF wireless switch panel
• NEMO DM1230 30 Amp battery to battery (DC-DC) charger
• Fresh and waste water tank level probes

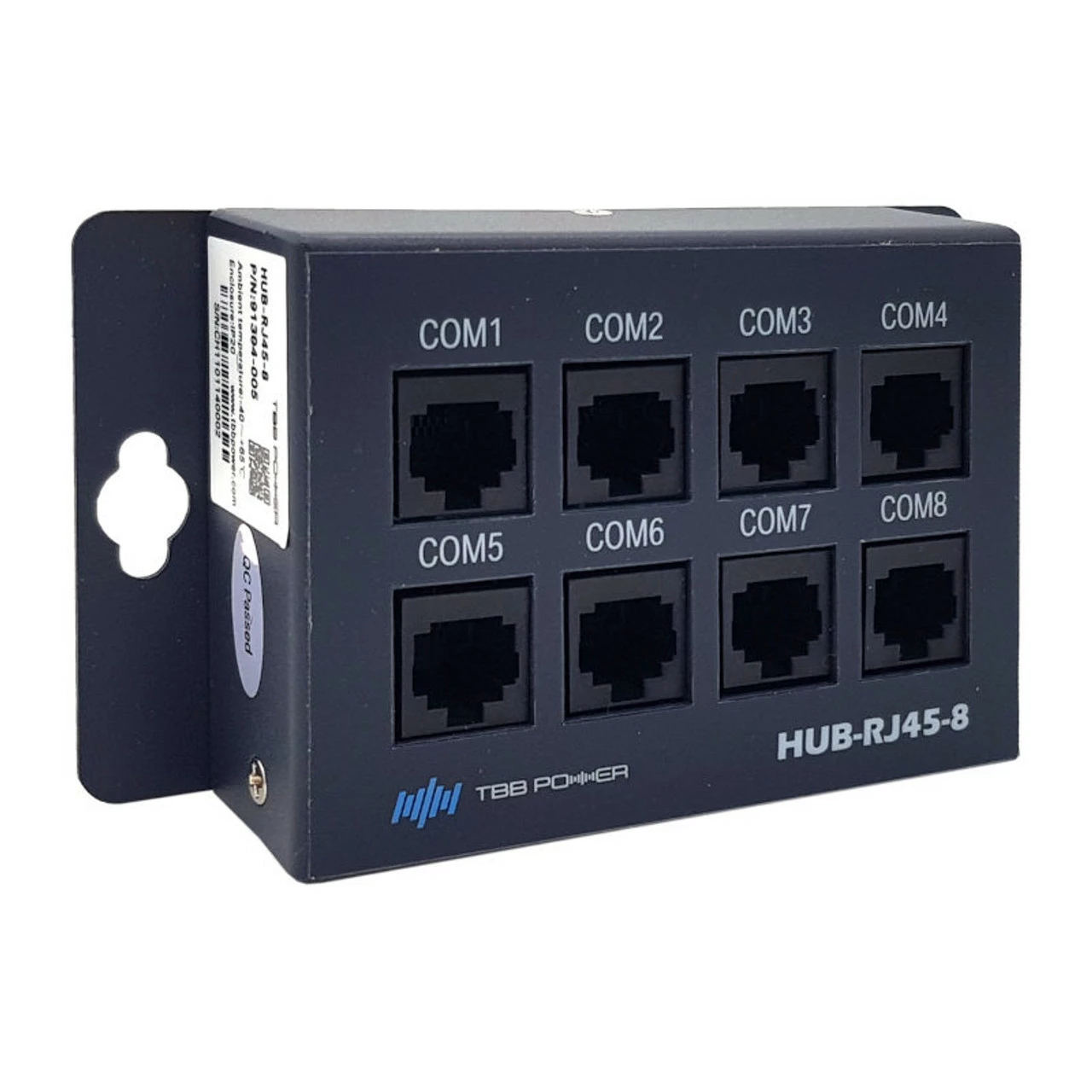

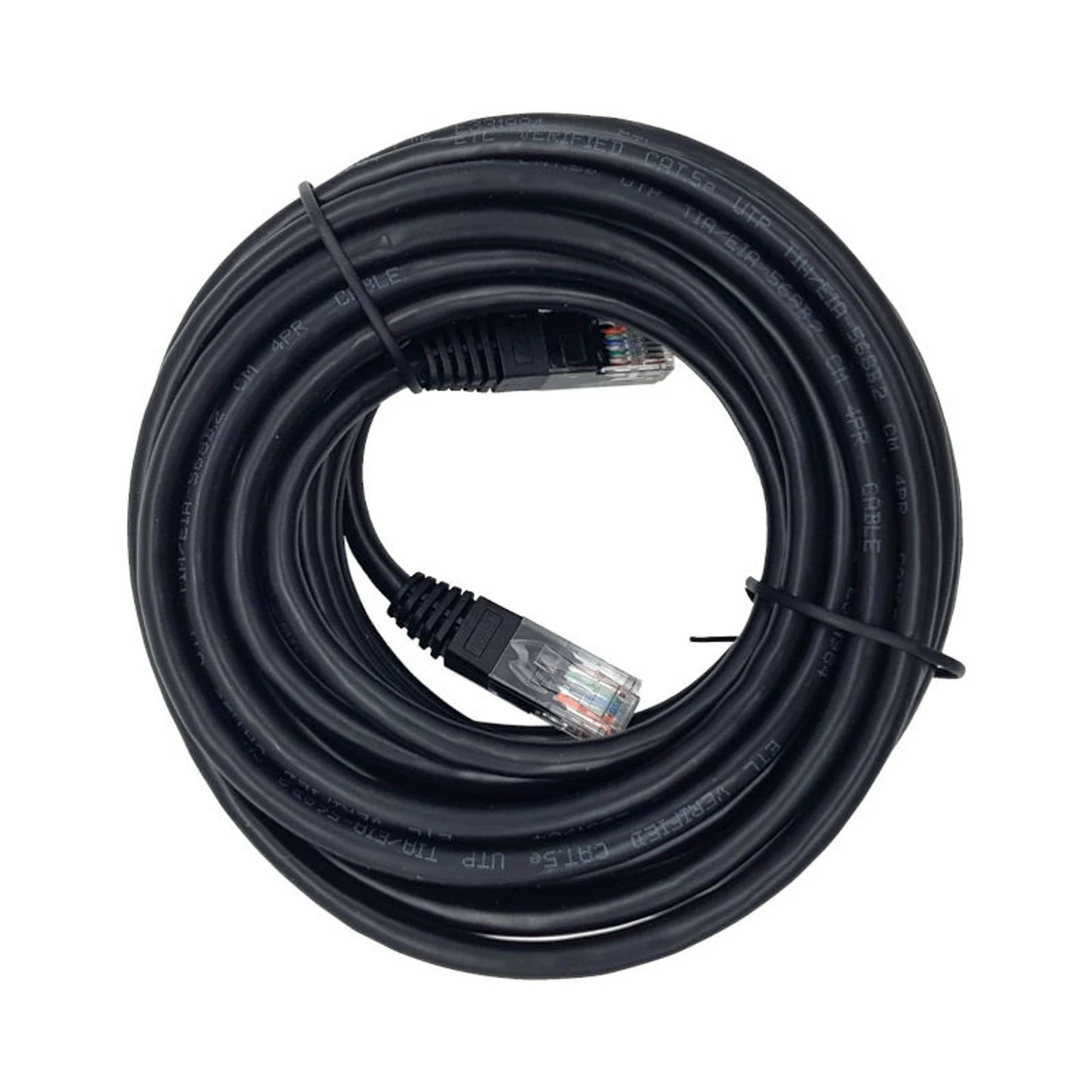

• Complete data cable kit and hub

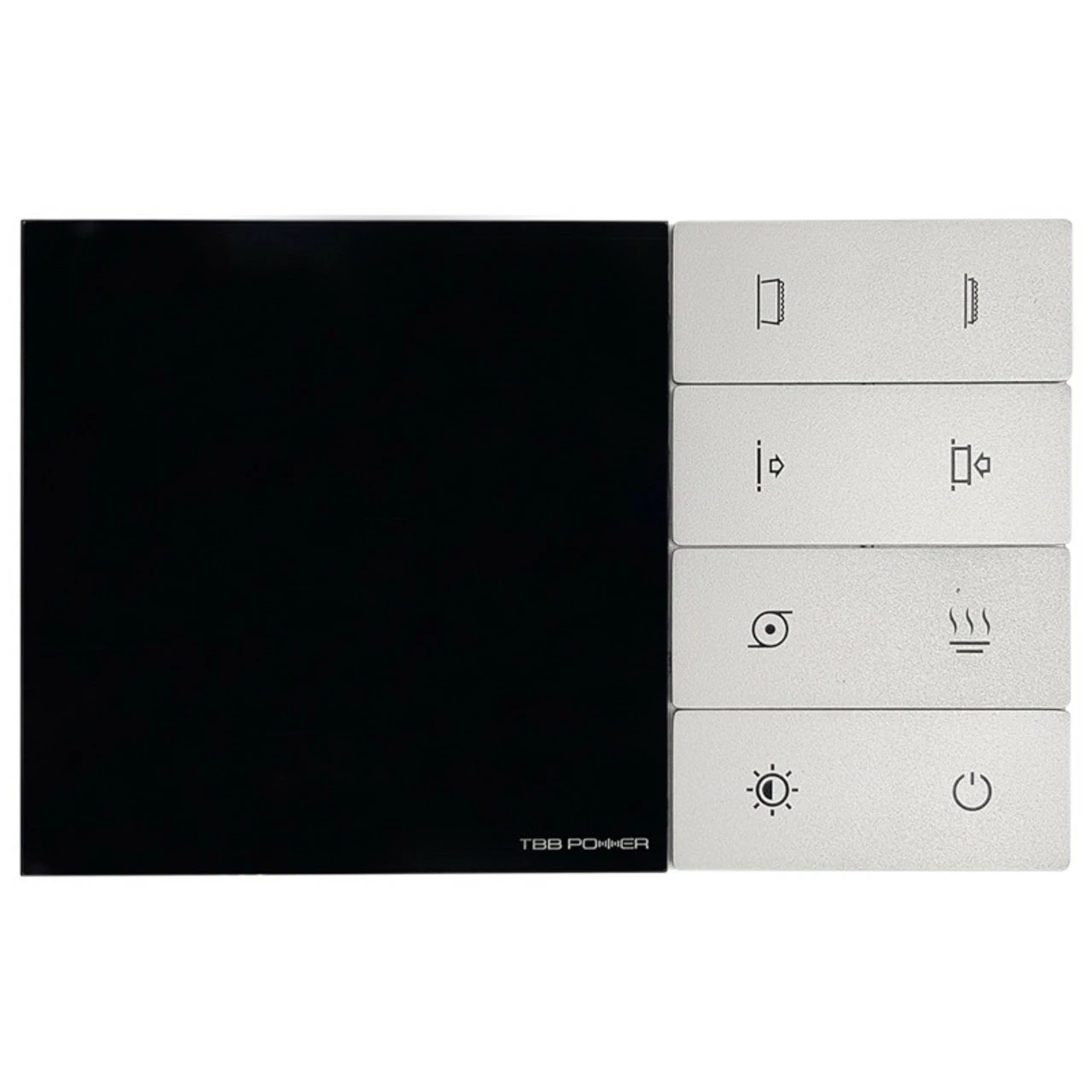

MONO Control Panel

• 4.5″ LCD display screen
• 8 physical buttons for complete control
• Bluetooth compatibility for connection with the free Mezzo app (iOS & Android)

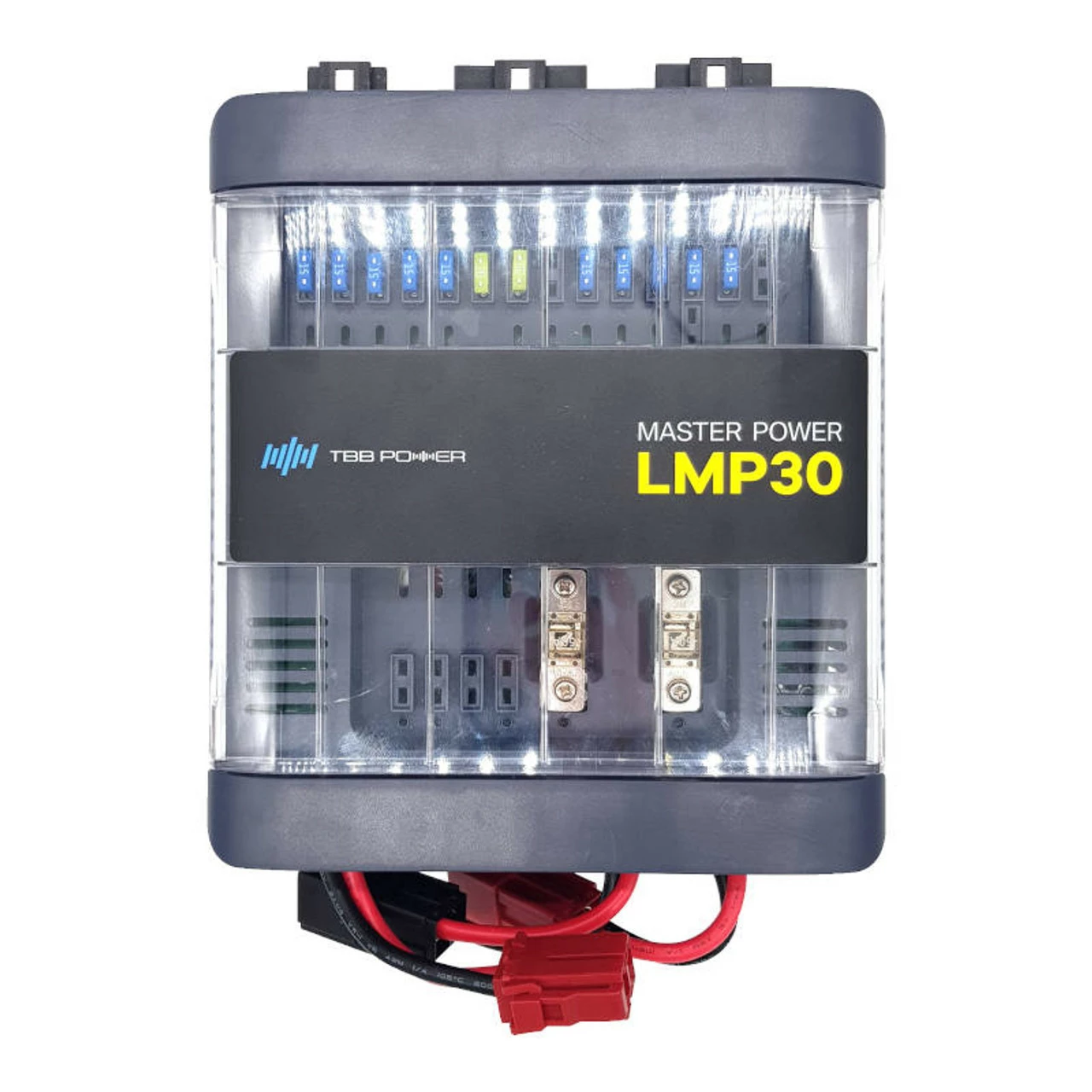

LMP30 Master Power Unit

• MEZZO system central control unit
• 30 Amp 230V AC mains leisure battery charger
• 15 Amp PWM solar charge controller
• Fresh and waste water tank level measurement system
• Compatible with all battery chemistry types – AGM/GEL/WET/LiFePO4
• RF receiver for PICO II switch panel

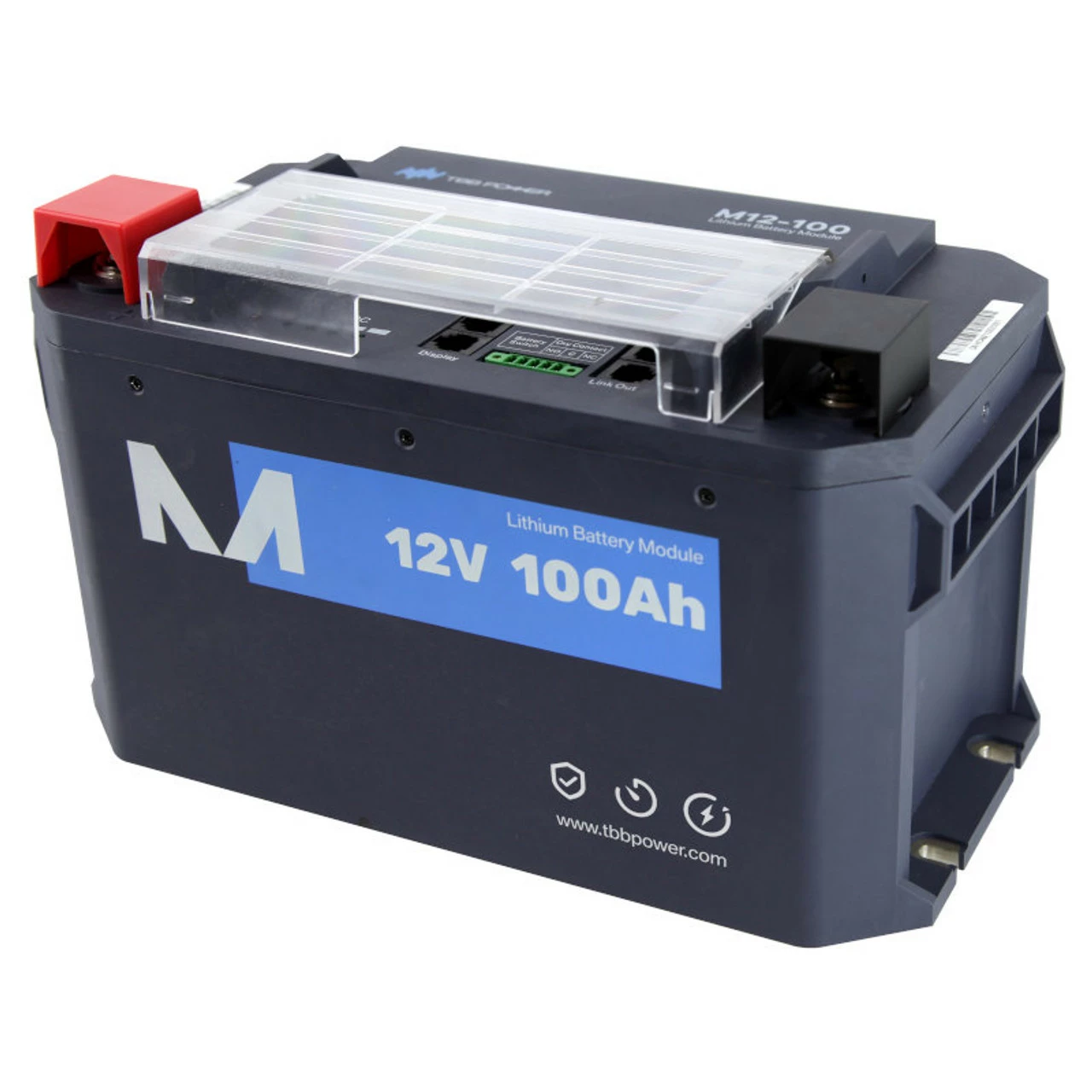

M12-100H 100ah LiFePO4 Battery

• 100ah LiFePO4 battery for rapid charging, high current discharge
• Long life cycle, over 3000 cycles at 100% Depth of Discharge at 25°C
• Recommended charge current up to 50 Amps 12V
• Nominal 12V discharge 100 Amps / Max 12V discharge 150 Amps
• Comprehensive Battery Management System for automatic cell balancing and full cell protection
• High accuracy shunt for State of Charge calculations
• Built-in heater allows the battery to operate at ambient temps down to -30 Degrees C
• Connect up to 8 batteries in parallel (only one included in the kit, but additional batteries can be purchased separately)

NEMO Series DM Battery to Battery Chargers DM1230

• Fully Euro 6 engine compatible
• TBB Premium II multistage adaptive algorithm for improved charging
• Built in automatic battery temperature compensation system (temperature sensor included)
• Suitable for AGM, GEL, Wet and Lithium battery chemistry
• Built in Battery Level Voltage Protection
• Built in fuse protection
• Data connection to LMP Master Power Unit
• D+ or ACC activation monitoring
• Quick, secure and easy WAGO style cable connectors

RSA/RSE-A Tank Sensor Kit

• Top of tank installation probes for fresh and waste water tanks
• Capacitive waste tank probe is not affected by dirt, solids or debris
• Precise tank level measurement

PICO II RF Wireless Panel

• Wireless installation for complete choice on location within your campervan, caravan or motorhome.
• Clear labelling for ease of use
• Surface mounted installation
• Powered by 2 x coin type batteries
• Programmable buttons using the Mezzo App

For added control over the Mezzo kit, the TBB Power Smartphone App, available on iOS or Android, provides bluetooth connectivity to monitor, adjust and control different elements of the Mezzo system. An example of Smartphone screenshots are shown below.



TBB Power Smart Control App



For added flexibility and to provide a more bespoke system to match your needs, there are upgrades available for the Mezzo Standard Kit

• Control Panel – Upgrade the Mono Control Panel to the full feature LCD C4-BT panel. Bluetooth compatibility through the Mezzo App for increased convenience.
• DC-DC charger – Harness more power from the motorhome or campervan electrical system with an upgraded DC-DC charger. DM1245 45A battery to battery charger or DMT1250 30A battery to battery charger with 20A bypass to power a 3-way fridge.

Technical Specifications:

Panel Wattage:

N/A

Solar Controller Technology:

PWM

Solar Controller Rating Voltage:

25V

Solar Controller Rating Amps:

15A

Inverter:

No

Inverter Charge:

N/A

230V Mains Charger:

12V – 30A

DC to DC Charger:

12V – 30A

Compatible Battery Types:

Wet/AGM/Gel/LiFePO4

Battery Included:

Yes

Battery Type:

LiFePO4 Lithium

Water Level Indication:

Yes – Probes Included

DC Outputs:

14

Bluetooth App Compatible:

Yes
