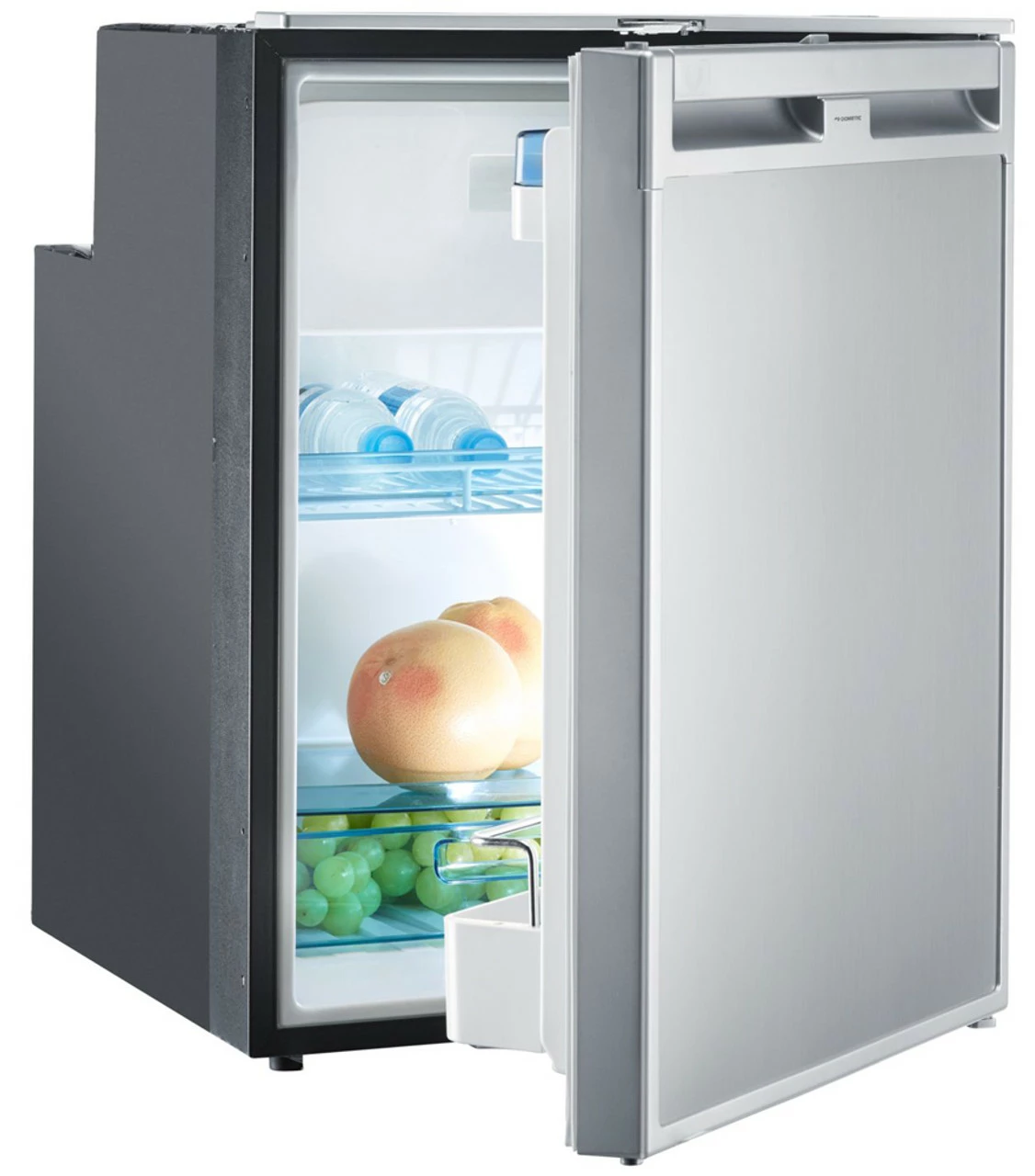

Dometic Waeco CRX80 CoolMatic Compressor 12/24 Volt Motorhome & Caravan Fridge Freezer

This 78 Litre Compressor 12/24 Volt Fridge Freezer is perfect for caravans, motorhomes, boats and campervans

The new compressor fridge with a completely removable freezer compartment, can create a full fridge space when needed. The Dometic technology has added benefits of low energy consumption, this means that it can easily run in conjunction with solar panels. The CRX80 has a 78 Litre capacity and has a layer of polyurethane insulation to maintain the cool temperatures inside. With the low energy consumption combined with the polyurethane insulation make for a great combination of efficiency and economy.

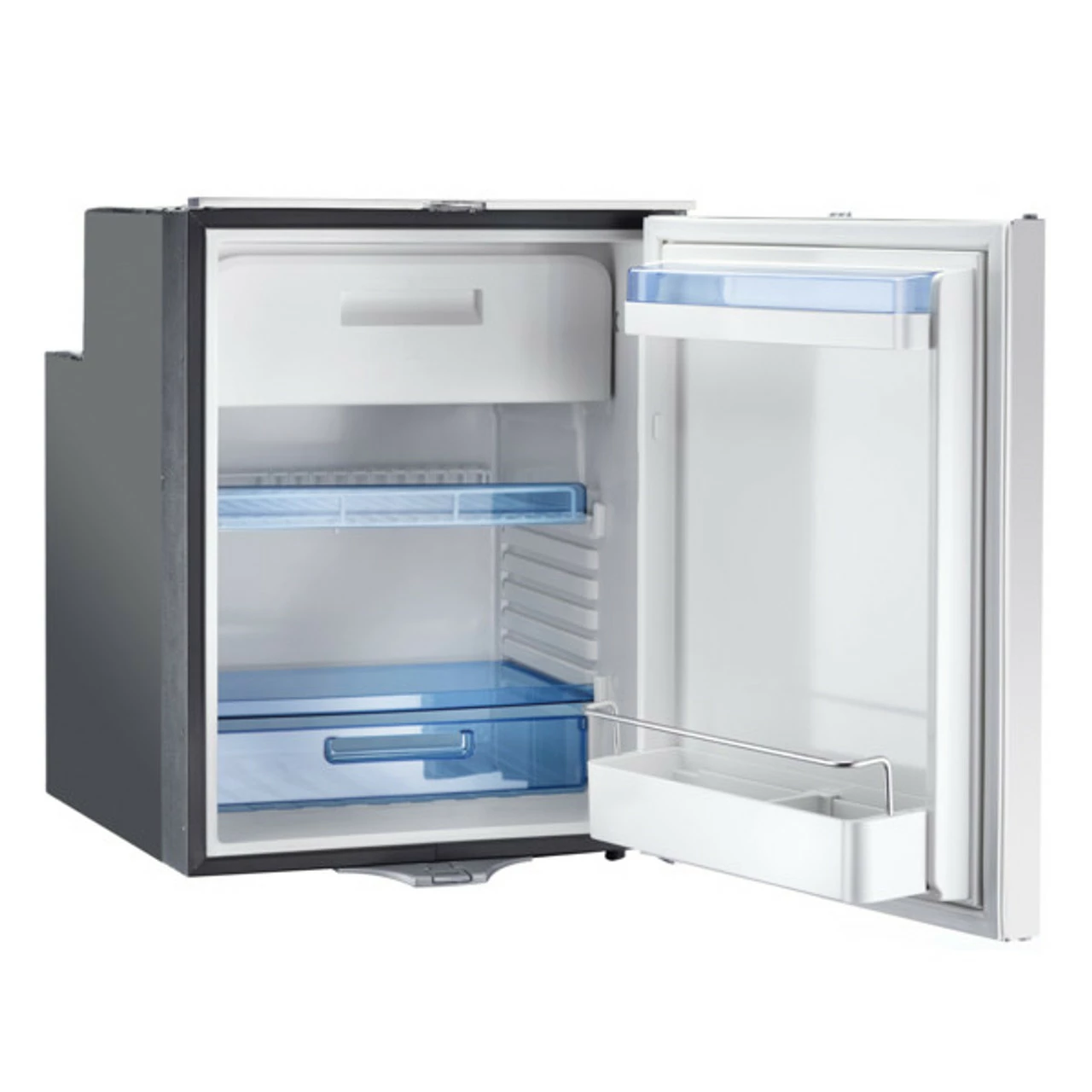

This 78 litre capacity CRX80 fridge, and a 7.5 litre freezer has a completely removable freezer compartment, which unlike like the previous model, means that you can fully utilise the fridge area if you have no need for the freezer. As a result of this, you can use the Waeco CRX80 compressor fridge as a conventional fridge/freezer, a full fridge or even a full freezer in your motorhome or caravan, boat or campervan.

Dometic Waeco CRX80 Motorhome & Caravan Compressor Fridge Freezer Features:

• 3 in 1 solution with unique removable freezer compartment: cooling, freezing or both at the same time.
• Intelligent electronic control of the compressor speed – up to 25% less energy consumption
• Integral unique on/off button on the internal control panel
• Condensed drainage via hose connection, if required, as standard
• Automatic reverse pole connection
• Fully hermetic compressor with integrated control electronics
• Fan speed automatically adjusts to the ambient temperature
• Perfect temperature control due to new design soft touch panel
• Bright LED interior lights with infrared on/off sensor
• Door lock wth dual function, lock or vent
• Stainless steel look door

Optional extras

• The Waeco CRX80 fridge can be run off mains with the addition of the MPS35 Mains Power Unit (sold separately).
• A smart switching control unit ‘fit and forget.’ Automatically detects mains and rests the vehicle leisure battery when on ‘hook up,’ or ‘shorepower’ 9103555825 (sold separately)
• Standard or flush mount installation frame, See Frame listing

Alternative 80L fridges comparison chart

Fridge	Height	Width	Depth
Dometic CRX80 Compressor Fridge	640mm	475mm	528mm
Dometic CRE80 Compressor Fridge	640mm	475mm	480mm
Webasto CR85 Compressor Fridge	620mm	477mm	545mm
Vitrifrigo C90i Compressor Fridge	622mm	470mm	515mm (Flush 557mm)

Manual:

Diagnostics

• CR/CRX Flashes Chart
• Danfoss Compressor Diagnostics
• Coolmatic CR Troubleshooter

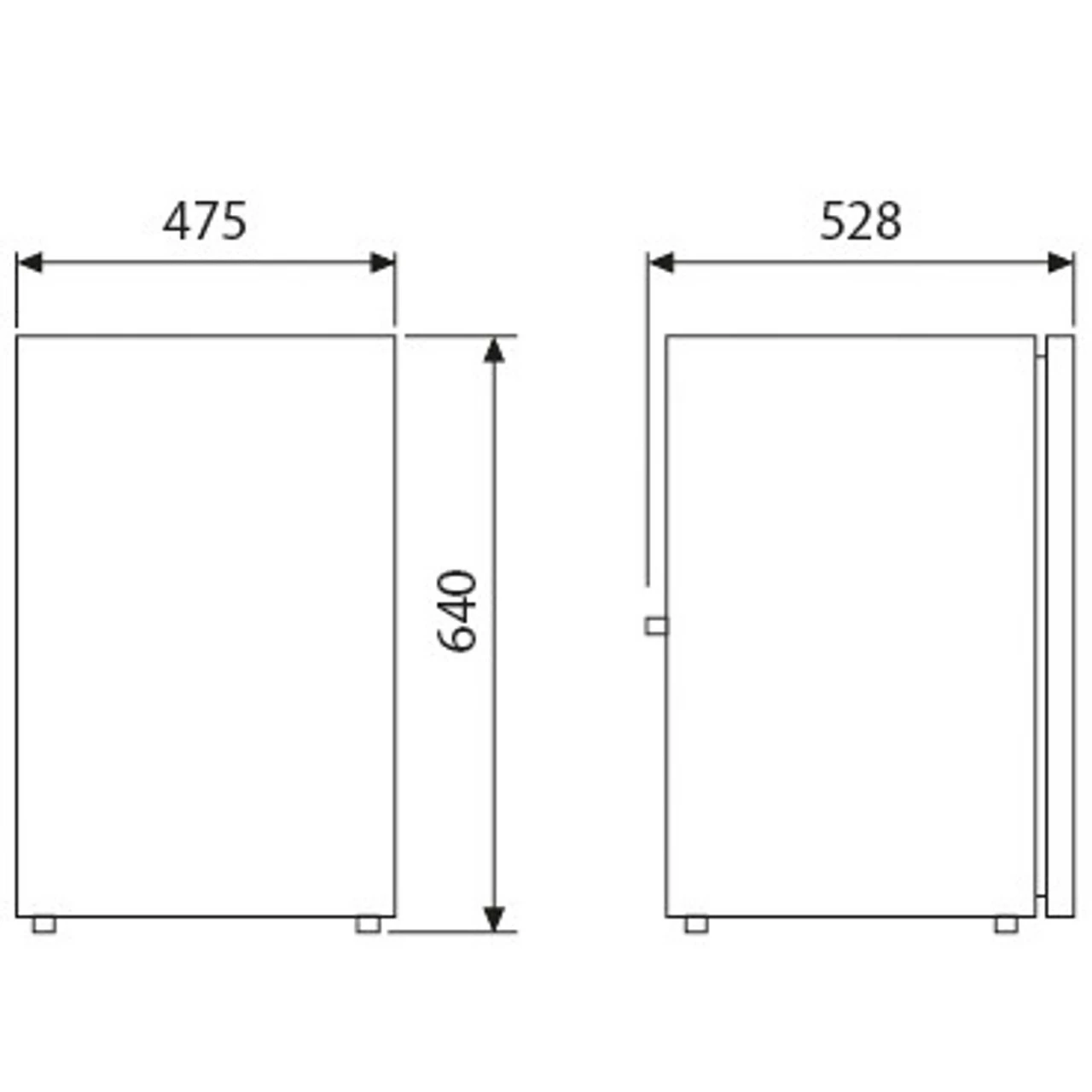

Technical Specifications:

Height (mm):

640

Width (mm):

475

Depth (mm):

528

Operation:

Compressor

Approximate Weight:

21.0 kg

Average Power Consumption:

45 Watts

Current Consumption At 12V:

1.14Ah/h at 25°C ambient temperature

Voltage:

12/24 V DC

Fridge Capacity:

78 Litres

Freezer Capacity:

7.5 Litres
