Dometic Waeco CoolMatic CRX140 Caravan Fridge-Freezer

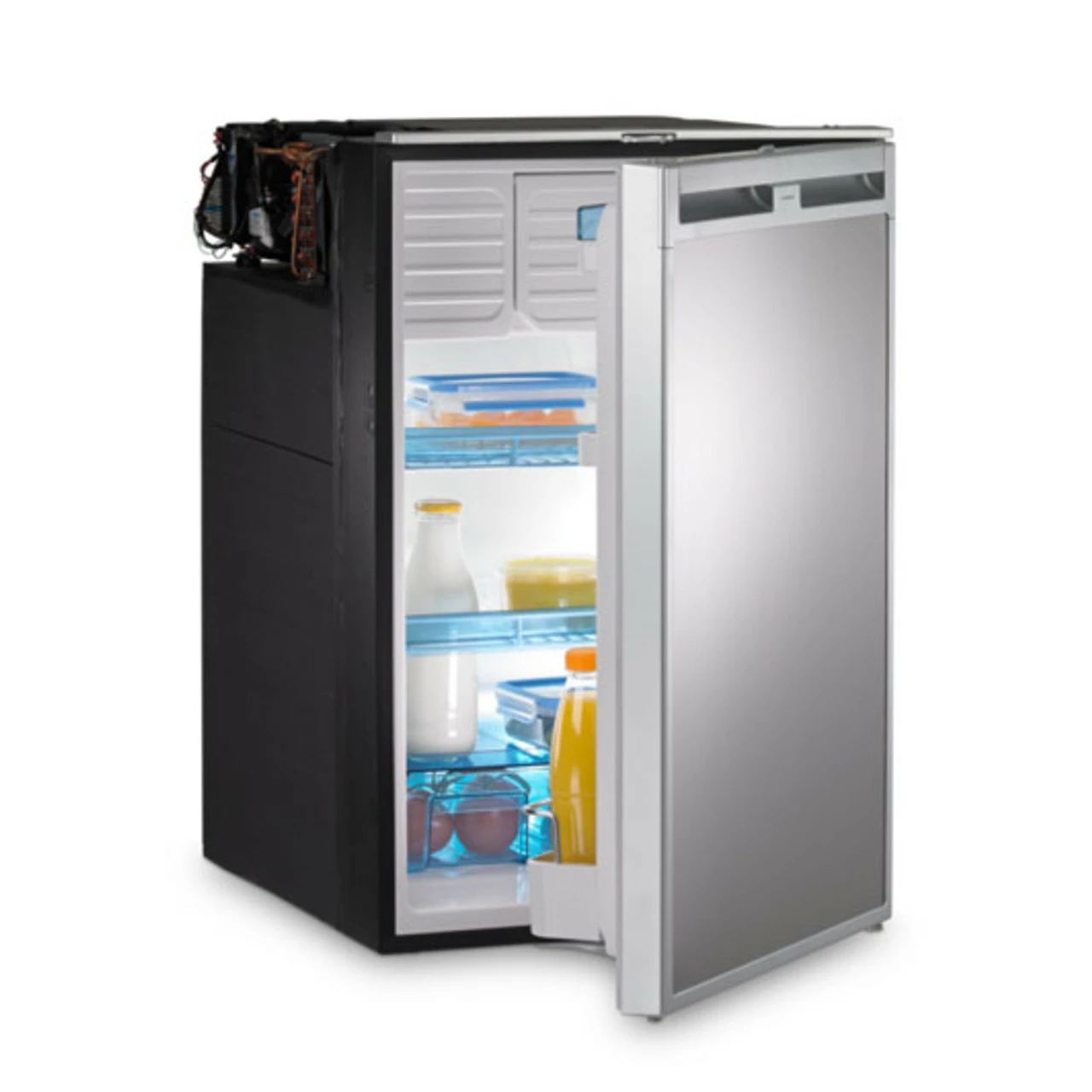

The Waeco CoolMatic CRX140 fridge freezer is the largest of the Waeco caravan/motorhome CRX fridges. This particular fridge is the only one which has built in mains so no extra adapters are required to run it off 230v, it also runs on 12v – 24v. With it’s luxurious interior and high quality stainless steel finish this makes the Waeco CRX140 ideal for all applications such as horse box conversions, caravans, motorhomes and yachts and especially for those customers who aren’t so restricted as to galley size! This refrigerator has a large total capacity of 130 litres which also includes an 11 litre 3 star freezer unit situated at the top if the fridge. The door can be hinged on either side, this can be facilitated easily and quickly.

If you require an even larger compressor refrigerator, we can also supply, -to order,- larger models up to 270 litres! These are still capable of running at less than 4.1 amps/hour at low voltage, and have various options like a cooling unit that can be mounted to the side or above or below the main cabinet. Some models even benefit from separate freezer doors

Dometic Waeco CRX140 features:

• Very low consumption on 12 or 24 volts
• Suitable for Solar operation
• Rated freezer compartment to -18°C

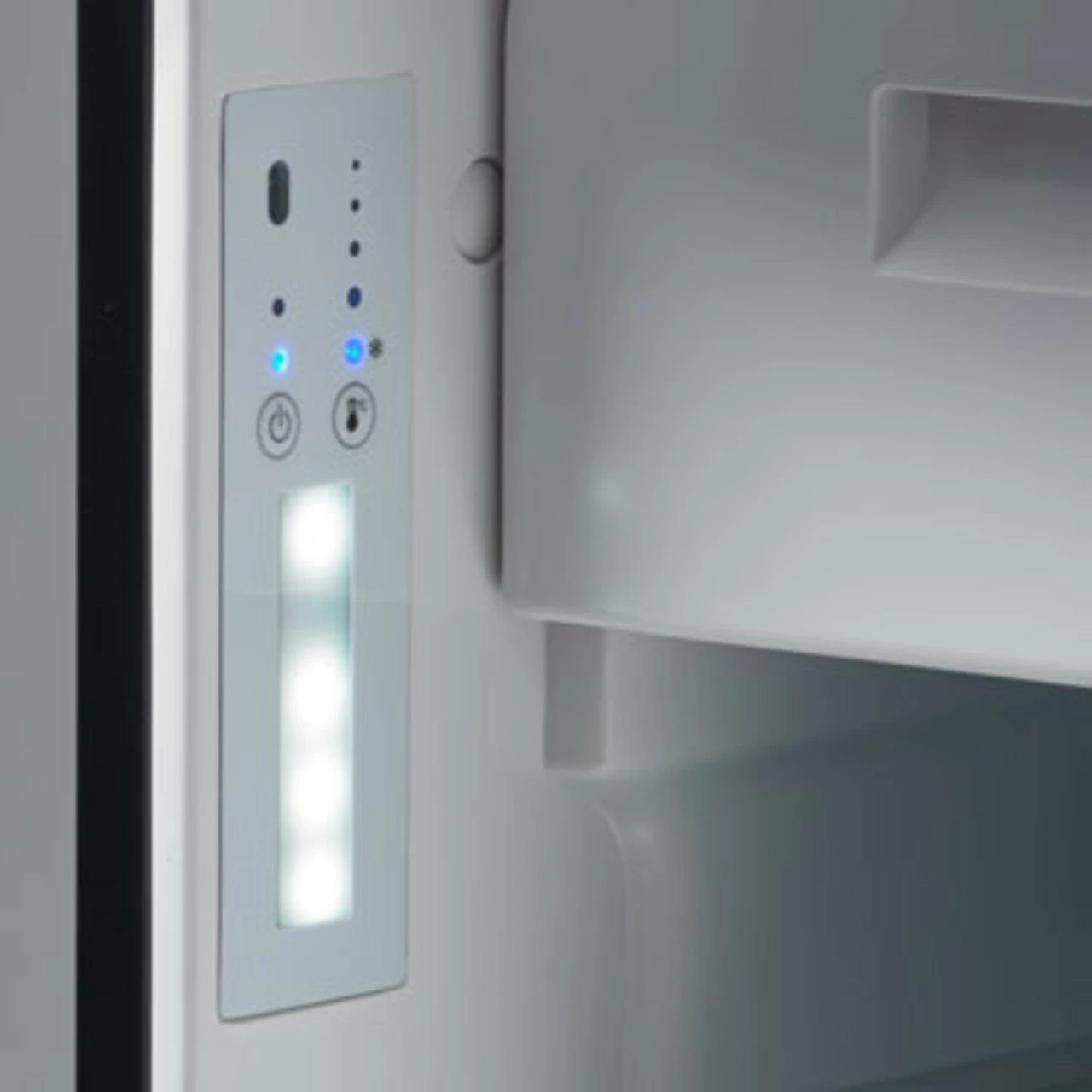

• Interior cool blue LED light
• Large bottle holder
• Door with magnetic seal
• Positive top and bottom mechanical seal for use on the move
• The door can be locked in a vented position when the fridge is not in use
• Freezer compartment
• Door tray & Salad bin
• Easy to change décor panel
• Danfoss BD50 Compressor
• Chrome version available at extra cost
• Flush and Standard Frames available at extra cost, the frames for this model only are available in Chrome as well

Manual:

Diagnostics

• CR/CRX Flashes Chart
• Danfoss Compressor Diagnostics
• Coolmatic CR Troubleshooter

Technical Specifications:

Height (mm):

815

Width (mm):

525

Depth (mm):

620

Operation:

Compressor

Approx Weight:

27.5 kg

Runs On:

12/24v

Capacity:

Approx. 130 litres including 11.0 litre freezer compartment

Connections:

12/24v (Cigarette lighter) & 230v Mains (3 Pin Plug)

Average power consumption:

approx. 65 watts

Current consumption:

2.3 Ah/h at +25°C ambient temperature, 2.6 Ah/h at +32°C ambient temperature, both at +5°C interior temperature

Temperature – down to -:

approx. +12 to -15°C
