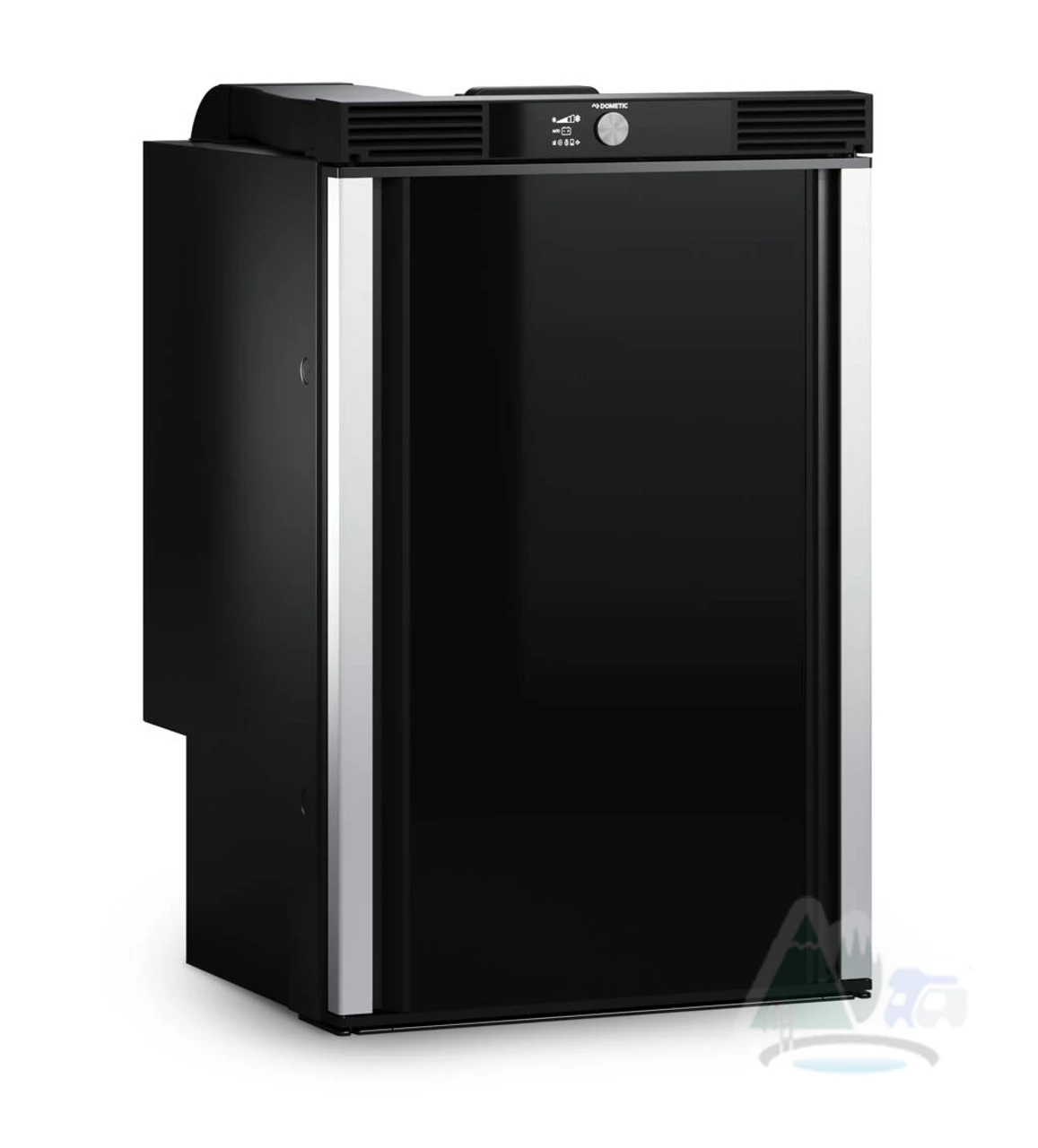

Dometic RCS 10.5XT Extra Deep Fridge 12V

The modern, powerful compressor refrigerator

The Dometic RCS 10.5XT 12v fridge gives you ample storage and cooling power in a compact package. This extended-depth model comes with a full 98 litres of internal volume, making it a great pick for extended touring use. It’s also designed as a cut-out model, with space at the rear of the fridge to allow it to fit over a wheel arch.

Easy to use

The integrated colour TFT screen makes it easy to monitor the performance of your RCS 10.5XT refrigerator. What’s more, innovative door hinges allow the door to open on both the left or right. Power is provided via 12V, which it uses with remarkable efficiency due to an insulated design and an efficient compressor. In fact, this compressor fridge is able to operate effectively at ambient temperatures of up to 38 degrees Celsius, thanks to its ST class compressor.

Modern aesthetics

The sleek black exterior is sure to elevate the kitchen of your campervan, caravan, motorhome or boat. The aluminium handles make the fridge a pleasure to open, and the interior LED lighting strips light up the fridge with a soft glow. It’s not all looks, either – Dometic have equipped this camper fridge with their Smart Ci-BUS technology, allowing it to communicate seamlessly with control panels.

The premium 12v compressor fridge

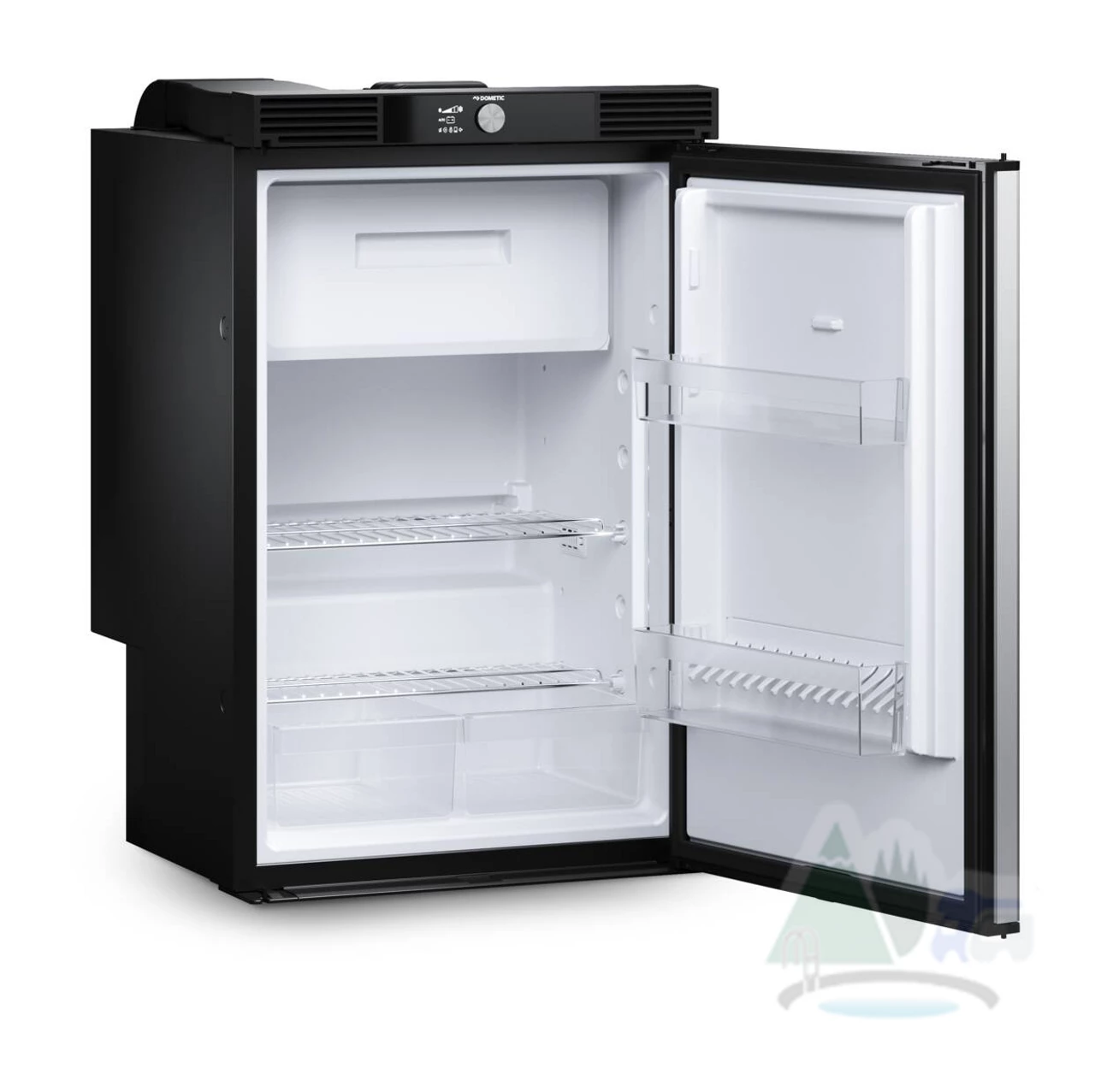

The 12v compressor fridge includes an innovative removable freezer compartment, which lets you choose a storage layout that works for you. An optional night mode provides quieter camper fridge operation, and for when you want your food cooled fast, you can activate the camper fridge’s boost function for on-demand cooling.

Dometic & Thetford Fridge replacement guide:

The Dometic RCS 10.5XT is a great replacement for the following Dometic & Thetford fridge models:

• Dometic: RM855x, RMS 855x
• Thetford: N3112A / N3112E / N4108A / N4108E+ / N4112A / N1121P / N1122E / N1126E / N1126A / N3108E / N3108A / N971P / N972E / N976A

Please note – measurements of the RCS 10.5XT 12v fridge may not be exactly the same as your old fridge – check measurements carefully!

Note – this fridge is not suitable for use with the MPS 35 or MPS 50 adapter. These adapters operate at 24v, whilst this fridge requires 12v.

Dometic RCS 10.5XT Compressor Fridge features:

• Integrated colour TFT display
• Easy twist/push control knob
• Interior LED lighting
• Door opens from both sides
• Extra capacity design
• Powered by 12 V
• Uses compressor refrigeration technology
• Removable freezer compartment
• Night mode for quiet operation
• Boost mode for on-demand cooling

RCS 10.5XT User Manual



RCS 10.5XT Installation Manual

Technical Specifications:

Height:

821mm

Width:

523mm

Depth:

610mm

Net weight:

25 kg

Input voltage (DC):

12 V

Refrigerant:

R600a

Refrigerant amount:

23 g

Noise (EN60704-1 & 60704-2-14):

44.00 dB(A)

Parcel weight:

30 kg
